Our professional wide format printer 3.2 meter has a streamlined approach that allows for high-quality prints on the media substrate such as banner, coated PP, vinyl and PVC film etc. With advanced features, it caters to intricate designs, vibrant colors and diverse applications. From signage, marketing & advertising industry to art reproduction, it revolutionizes, offering unparalleled customization and fulfilling the demands of today’s dynamic & fast-paced market. The wide format printer 3.2 meter is designed with an advanced structure & electric system and provides customizable printing solutions across diverse industries.

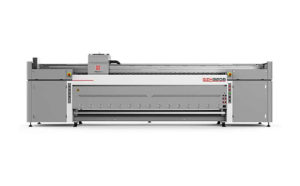

Model: AQ3202S / AQ3204S
| Model | AQ3202S | AQ3204S |
|---|---|---|
| Print Head | Dual Epson i3200 E1 print heads | 4x Epson i3200 E1 print heads |
| Technology | Piezo with Variable Dot (Grayscale) | // |
| Ink | EPI2-2 years durability eco solvent ink | // |
| Color Config. | K.C.Y.M. | // |
| Ink Supply System | Bulk ink supply system with ink cartridges | // |
| Printing Width | Max.3200mm | // |
| Media Type | Banner, Coated PP, Vinyl, PVC film | // |
| Roll Weiught | Max. 150kgs | // |
| Core Diameter | 3in (76.2mm) or 2in (50.8mm) | // |
| Drying System | Three heaters and IR Dryer | // |
| Printing Speed Draft | 360x1800dpi - 55m2/h | 360x1800dpi - 110m2/h |
| Printing Speed Production | 720x1200dpi - 41m2/h | 720x1200dpi - 82m2/h |
| Printing Speed Hi-resolution | 720x1200dpi - 32m2/h | 720x1200dpi - 64m2/h |
| Printing Speed Photo | 720x1800dpi - 28m2/h | 720x1800dpi - 55m2/h |
| Data Interface | External: Ethernet; Internal: Fiber Optical | // |
| Working Environment | Temp.23ºC~29º, Humidity: 50%~80% | // |
| Software | FlexiPRINT/Onyx (Optional)... +GZ Printer Manager | // |
| Power | Single phase, AC220V±10%, 50Hz/60Hz, 6.7A (Printer)+17A*2(IR Dryer) | // |
Packed / Installed Size | LxWxH(mm): 4930x1150x1760 / 4885x1401x1661 | // |
| N.W./G.W. | 1192kgs/903kgs | // |
Print Head
The Epson i3200 printhead is renowned for precision and reliable printing. It is using piezo variable dot technology for precise ink droplet size placement. It results in sharp prints with accurate colour reproduction.
Piezo Variable Dot (Greyscale)
Piezo variable dot technology is used to control the ink droplet size which enables the high-resolution output in the printing process. The size of the droplet can be adjusted to result in fine detail and smooth gradients.
Dual IR Dryer
A wide format printer 3.2 meter has dual infrared dryer and three heaters is a feature in the digital printing machine that employs two separate infrared drying systems to accelerate the drying process. The two IR dryers reduce the drying time, allowing for faster production and improved efficiency.
Air Shaft Taking Up System
An air shaft take up system maintains controlled tension, prevents material slack and wrinkles. It is essential for consistent media feeding and facilitates the winding of material onto the take-up roll and minimizing material waste.
RIP Software
FlexiPRINT/OnYX RIP software with GZ printer manager has a user-friendly interface to simplify the printing process. It supports a wide range of file formats, enhances compatibility and fast image processing.wide format printer 3.2 meter
