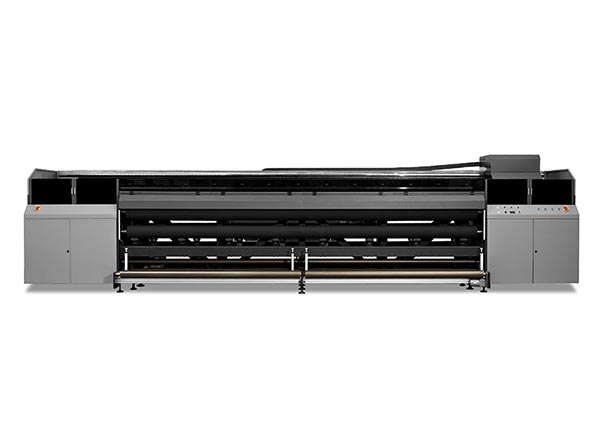

With the UV printer roll to roll 5 meter, experience unprecedented print speed, high quality & lucrative cost of ownership and support to a variety of flexible media. It is the perfect industrial UV printing machine with high precision mechanical accuracy and the best choice for indoor & outdoor printing applications. It ensures high-quality back to back printing with accurate variable point technology that consumes low ink to print on the material. Embedded with a UV curing system that has several advantages economically & ecologically for the process.
Model: HT5000-RTR
| Model | HT5000-RTR |
|---|---|
| Printhead | Kyocera KJ4A |
Quality of printheads | 8-10 Printheads |
| Resolution | 726 X 2400 dpi |
| Printing speed Draft | 192 m1/hr |
| Printing speed Production Quality | 140 m2/hr |
| Printing speed Standard quality | 108 m2/hr |
| Max media width | (W) 5.0 |
| Max media thickness | m 2 mm |
| Media type | Flexible material |
| Ink | Flexible UV ink |
| Ink color | C, M,Y, K |
| Machine Size | 8.88 X 2.03 X 2.02 M (L X W X H) |
| Machine net weight | 6300 kg |
| Machine gross weight | 8170 kg |
| Power consumption | 11.1 KW (25A) |
| Power supply | 400VAC.50Hz 3P/N/PE |
| RIP support | Caldera |
| UV Curing | LED |
| Interlace | High Speed PCIE |
| Environment | Separated workroom in good cleaning and ventilated condition |
| Ambient Temperature | 18oC — 30oC(64oF-86oF) |
| Constant Humidity | 30% - 70% RH (non-condensate) |

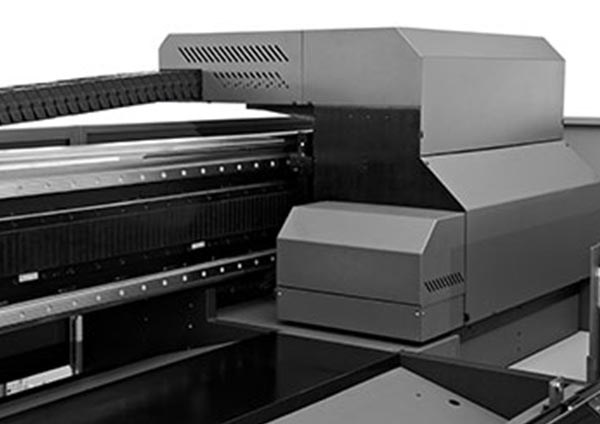

Kyocera Printhead
The high-speed industrial grade Kyocera dual channel print head provides unbeatable quality in the media output and capable of printing at resolutions of 726×2400 dpi. It enhances the visibility of the print and gives an outstanding surface to the picture.
Caldera
UV printer roll to roll has ripping software, using to convert as a raster image from the computer vector files such as photoshop, illustrator etc to make it effectively understand by the printers. It has enhanced automation, significantly time-saving and decreased downtime.
Pressure System
The automatic negative pressure system manages the pressure created between the printhead & ink box, realizes the control of ink and presents a better control of it. It keeps the performance steady, avoids external interruptions and solves the issue of ink spilling or dropping from the print head during printing.
Ink Purge System
The ink purge system improves the service life of the head by clearing out the most stubborn blockages and cleaning the dried ink from nozzles. The advanced printing taking-up system winds up the printed material automatically, avoids media shifting and the press roller system controls the take-up unit for the optimum feeding and tracking.
UV Curing System
The UV curing system is an environmentally friendly LED cold light source and enables printing on heat-sensitive substrates. It is a cost-effective solution, consumes low electricity, prevents media distortion and has major advantages in terms of performance & maintenance of LED.
