UV Hybrid Printer 3.2 Meter

Achieves Production At Higher Speeds

The UV hybrid printer 3.2 meter offers a more widespread capability, versatility and potential for profit-making towards businesses involved in the large format printing work. It is capable of delivering the fast UV performance on printing the wallpaper, advertisements and also in other rigid & flexible materials. This is the one-man operated machinery, designed for high working efficiency and helps to meet the industrial production demand. It enables super speed production with speed up to 40 square meters per hour, engineered for high-endurance work, low running cost, highly flexible and more productive.

Model: HT3200UV

Functions & Features

The UV hybrid printer has a full loop automatic media thickness detector to measure the thickness of the material up to 50mm. The automatic height control system for the exact positioning of media measures the distance between nozzle & media and calibrates the printing head distance for optimal image quality.
It comes with 8 colors for printing such as C, M, Y, K, Lc, Lm, W, V and can deliver 1200 dpi print for a high gloss finish, protecting the print against abrasion & scratching.
The collision avoidance system on the carriage prevents the damage to print head effectively and an automatic pin registration device is equipped with a vacuum table that helps for the precise & consistent media placement at zero position.
An emergency stop switches are available on all the corners of the printers and if there is any misplacement of media or other reasons, can stop the operation from any corner manually.

Technical Specification

Model	HT3200UV
Printhead	Ricoh Gen5
Quantity of printheads	4-8 pcs(Double rows)
Resolution	1200 x1200 dpi
Print speed Draft	55m2/h
Production	40m2/h
Quality	32m2/h
Print mode	Unidirectional and bidirectional
Max width	3.2m
Max media thickness	50mm
Media type	Rigid and flexible flat materials
Ink	Environmental friendly UV/LED curable ink(VOC free)
Ink color	C, M, Y, K., Lc, Lm, V, W
Image format	Adobe Postscript Leve13, PDF, JPEG, TIFF, EPS, AI
Machine size(LWH)	6.191.591.56M
Machine net weight	2260KG
Machine gross weight	3130KG
Power consumption	9.0KW(20A)
Power supply	400VAC. 50Hz 3P/N/PE
Certification	CE, FCC
RIP support	Caldera, Onyx
UV Curing	Mercury vapor UV lamps. LED(optional)
Interface	High Speed PCIE
Environment	Separated workroom in good cleaning and ventilated condition, avoid direct sunlight, Temperature: 18° C — 30° C(64°F-86°F), Constant Humidity: 30%-70%

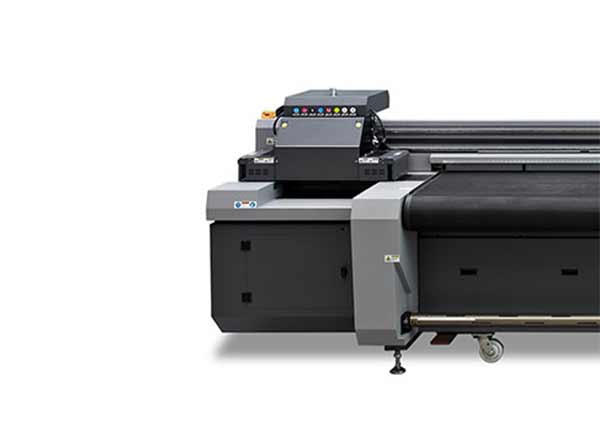

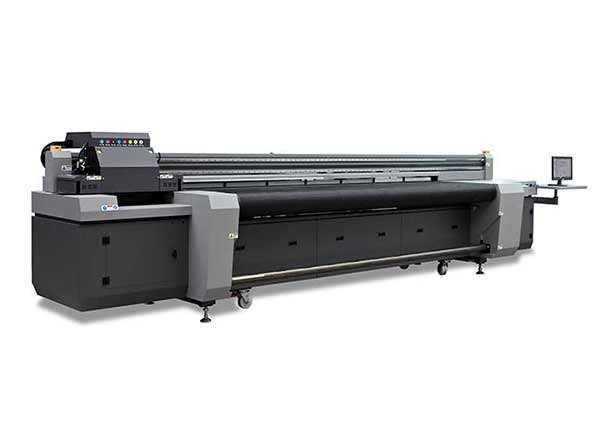

Reference Images

Powered By

Components of The Machine

Ricoh Gen5 Printhead
The industrial Ricoh Gen5 grey-scale printhead has a maximum resolution of 1200×1200 dpi, using multi-drop pixel technology to decrease the ink usage, spray the ink onto the material and transfer the desired image in the media to produce the output image.

Onyx
The onyx is the RIP software interface incorporating full customization, a user-friendly printer setting for ease of operation and assists to produce quality end-product.

Caldera
It also supports caldera, the innovative RIP software in the inkjet printing industry to deal with the printing workflows in wide-format graphics, understands the bitmap and gives coherent output.

Environmental
UV hybrid printer using environmentally-friendly non-volatile organic compounds UV curing ink reduces compliance costs, increases workplace safety for the workers & meeting the demands of environmental responsibility.

UV Curing
For UV curing, using mercury vapor UV lamps that generate high-intensity ultraviolet light to dry the print instantly, elevates the durability of printing, protects the underlying material from harmful radiation effects and extends its lifetime. It is capable of delivering the fast UV performance on printing the wallpapers.
