The UV flatbed printer using the special UV curable ink & UV lamp ink-curing system sprays ink from the nozzle and opens up the possibility to print on any flat substrate. The final output product has extreme print sharpness, a high level of gloss finish, color saturation, scratch-resistant surface and faster production time. It adopts computer control to give instructions according to the demand exactly which lowers the resource wastage. It prints the precise color pattern, perfect gradient, strong artistic & stereo effect, runs both individual & batch printing and really improves the work efficiency.
Model: H2513GN
| Model | H2513GN |
|---|---|
| Print Head | 3-8 Ricoh Gen 6 print heads |
| Resolution | 720x900-720x2400 dpi |
| Curing System | Dual water cooling LED UV curing lamps |
| Ink | UV curable ink |
| Color Configuration | 1xKCMY+1xWW+1xVV & 1xKCMY+2xWW+2xVV |
| Color Configuration | 2xKCMY+1xWW & 2xKCMY+2xWW |
| Color Configuration | 3xKCMY & 2xKCMY+1xWW+1xVV |
| Color Configuration | 4xKCMY & 3xKCMY+1 xWW |
| Ink Supply System | Gntek negative pressure system and white ink stirring & circulation system |
| Ink Tank | 2500ml |
| Media Thickness | Max. 100mm |
| Media Type | Acrylic, Aluminum sheet, Foam board, PVC board, Leather, Glass, Wood, Ceramic tile, etc |
| Table Size | 2650x1325mm |
| Printing Size | Max. 2500x1300mm |
| Printing Speed Draft | Resolution 720x900dpi - 2xKCMY = 40.3m2/h - 3xKCMY = 54.5m2/h - 4xKCMY = 66.2m2/h |
| Printing Production | Resolution 720x1200dpi - 2xKCMY = 33.0m2/h - 3xKCMY = 44.8m2/h - 4xKCMY = 54.9m2/h |
| Printing Hi-res | Resolution 720x900dpi - 2xKCMY = 26.2m2/h - 3xKCMY = 35.3m2/h - 4xKCMY = 43.9m2/h |
| Printing Photo | Resolution 720x1200dpi - 2xKCMY = 20.0m2/h - 3xKCMY = 27.7m2/h - 4xKCMY = 34.6m2/h |
| Data Interface | External: USB3.0; Internal: Fiber Optical |
| Working Environment | Temp.20°C-30°C, Humidity:35%-65% |
| Software | FlexiPRINT UV+GZ control console |
| Power | Single-phase, 50/60Hz, AC220V+10% 13A(Printer&UV controller)+21A(Vacuum system) |
| Packed/Installed Size | LxWxH(mm): 4700x2300x1750/4452x2040x1495 |
| G.W./N.W. | 1606kgs/1200kgs |

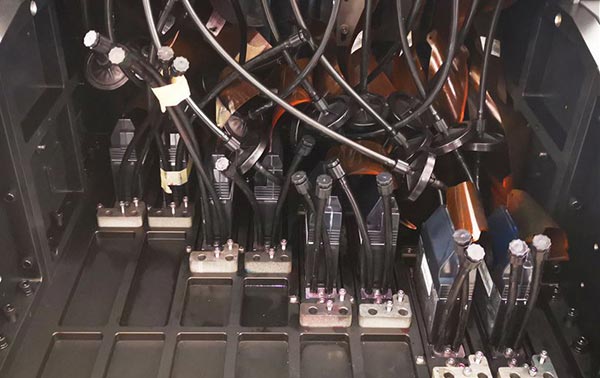

Ricoh Printhead
The Ricoh Gen 6 print head provides good graphic results with a maximum resolution of up to 2400DPI. It guides the print carriage system for the high definition printing quality and also it is easy to clean & replacement of the parts.
FlexiPRINT
The UV flatbed printer is driven by RIP software to make the process highly interactive and simplifies the entire workflow. It automates the instruction to print and converts from the digital file to a raster image that results in true color output.
Flatbed Printing
With flatbed printing, can make authentic designs where the opportunities are endless including the businesses such as architects, designers & construction sketches etc.
Smooth Surface Output
UV flatbed printer has four zones precise vacuum table drives the material for printing without wrinkles or deformation by media alignment pin and blower function. Easy to print with more stability & material placement for the smooth surface output.

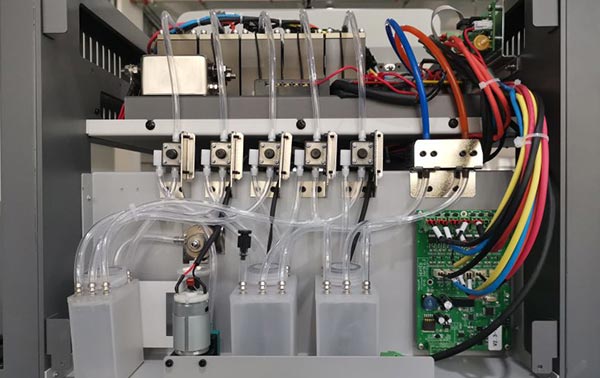

Pressure System Controls
GZ negative pressure system controls the pressure of supplying the ink and handles the pressure between the ink tank & print head. It solves the problem of spilling & dropping ink out of the head unexpectedly and delivering stable operation without external disturbance.
