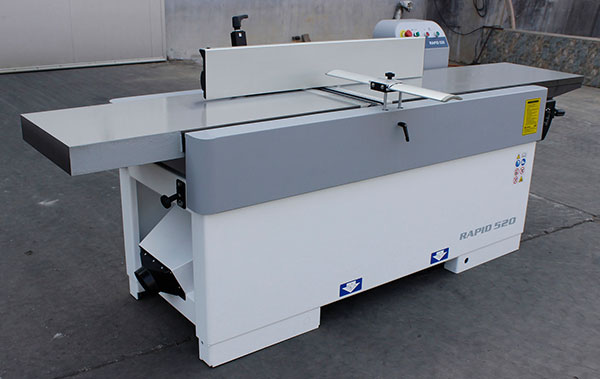

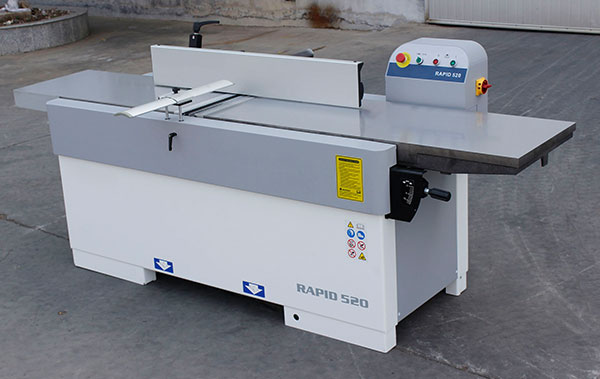

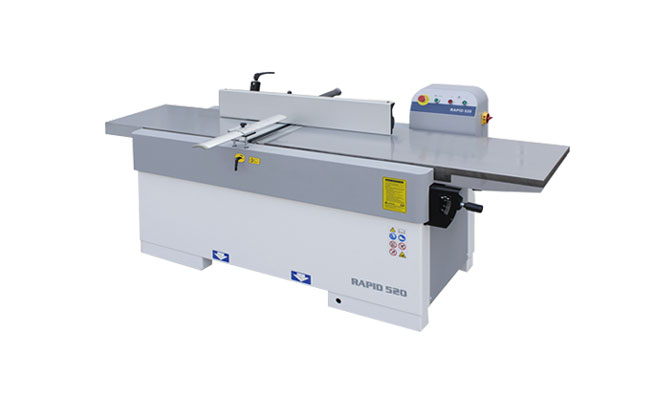

The surface planer machine contains sharp blades attach on the top to remove the wood chips, smoothen the surface & edges and reduce the thickness of the wood. It is a linear motion machine and produces flat horizontal, vertical surfaces & parallel edges. The spindle motor is the core component to derive flawless planing and the blade guard acts as an anti-kickback. It can effectively handle the task, relatively compact, designed to be durable and increases processing without affecting the quality at the same time. The performance at a consistent depth for the truly flat surface and gets the desired thickness as per the specific need.
Model: Rapid520
INDICATION AND CONTROL | |
| Control method | Manual |
CAPABILITY | |
| Max. cutting depth | 8mm |
WORKING TABLE | |
| Working table size | 2750mm x 520mm |
| Guide plate size | 1200mm x 190mm |
| Guide plate tilting angle | 0° / 45° |
TOOLS | |
| Planer cutterhead type | Straight |
| Diameter of planer cutterhead | 1200mm |
| Number of planer knives | 4pcs |
| Spindle speeds range | 5000rpm |
ENGINES AND POWER SUPPLY | |
| Spindle motor power | 5.5KW |

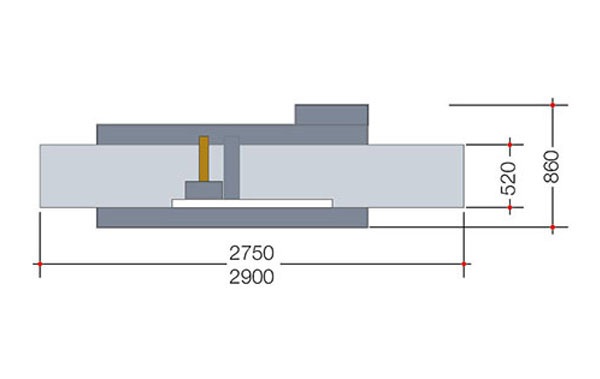

OVERALL DIMENSIONS AND WEIGHT | |
| Weight | 740kg |
| Overall length | 2750mm |
| Overall width | 860mm |
| Overall height | 800mm |

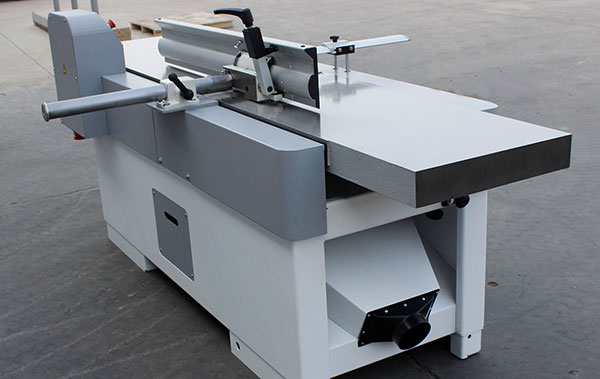

The fence is the guider used to keep the material parallel to the blade, secures a workpiece and serves its purpose of accurate cut. The bridge guards have the capacity to cover the full length of material, protects the whole planing area, important contribution in providing more working safety and help for the output in uniform thickness & width.
The table height adjustment lever is used to handle the height desired for the output & depth of cut and saves the material from measurement or dimensional errors. In a surface planer machine, the four planer knife attached to the shaft helps to achieve an even smoother surface while planing.
For the extraction of wood dust & chips originating from the operation, it is connected with the dust hood to keep the place dust-free, occupational safety and avoid health hazards.
