Sheet Metal Laser Cutting Machine

Makes The Cutting Scope More Extensive

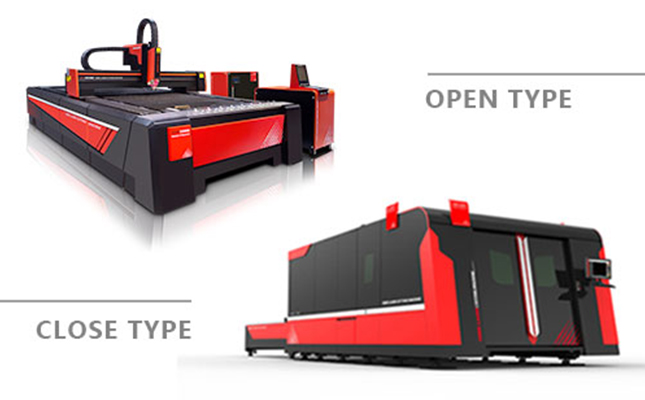

Our open & close type sheet metal laser cutting machine is fully integrated to available in both with and without automatic interchangeable table which is specially designed for the fastest cutting of metal with better quality. The extended interchangeable table eases the process of loading & unloading the finished material which saves the time and increases the flow of operation for the different types. It ensures the machining accuracy that comforts the operation and improvises the cutting precision.

Laser Power: ≤ 6000W

Functions & Features

The highly powerful fiber laser emits through the cutting head provides an accurate level of precision even for the complex design, reduces material waste and removes the chances for errors.
The auto-focusing laser head sheet metal laser cutting machine can move up and down with the help of a sensor so finding the distance between focal length and cutting material is the same as the instruction given in the software.

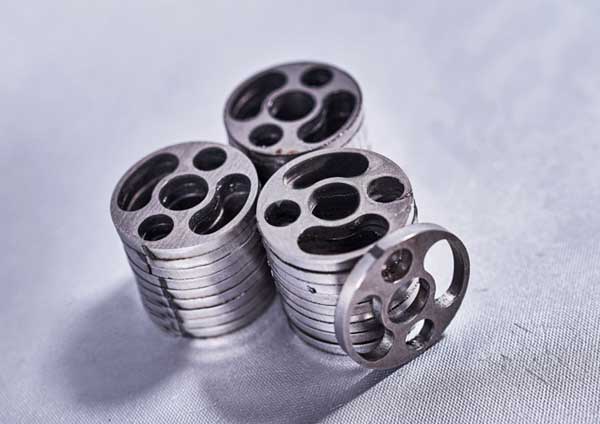

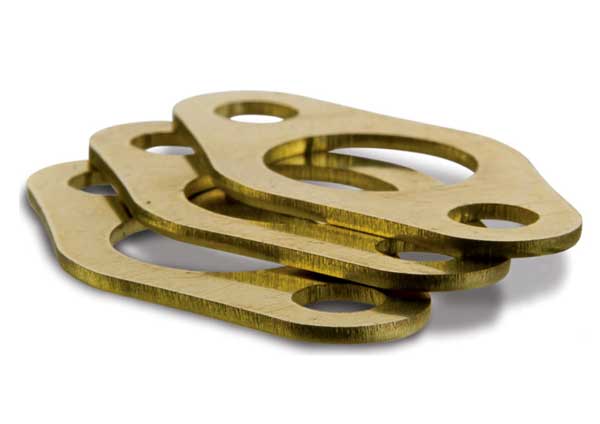

The fiber laser cutting machine is capable of cutting the varieties of materials with various thicknesses such as stainless steel, carbon steel, aluminum plate, brass plate, mild steel, galvanized steel and manganese plate.
After the process of completion. it reduces the time for secondary processing like no need for welding or grinding. Hence, produces an enormous value of production in minimum time.

Technical Specification

Model	D-WIN
Laser Source	IPG Fiber Laser Source
Laser Power	1000W 1500W 2000W 3000W 4000W 6000W
Working Stroke	1500x3000 / 1500x4000 / 2000x4000 / 1500x6000 / 2000x6000mm (actual size shall be prevail)
Max. Cutting Speed	Depending on metal type and thickness
Power Supply	380V/50Hz/60Hz/60A
Footprint Size	9000x5000mm as per working stroke of 1500x3000mm

Stability 95%

Cutting Accuracy 99.99%

Durability 97%

Major Components

DNE Bsytronic Head

Bystronic (Swiss)

Fiber Laser Source

IPG (Germany)

Servo Motors & Drives

Schnieder (France)

Hellical Rack & Gear

WMH (Switzerland)

Planetary Gearbox

Neugart (Germany)

Components of The Machine

Fiber Laser Source
The imported fiber laser source from IPG, Germany generates the high-quality powerful optical beam to ensures the efficient cutting with less maintenance and lower cost.

Guide Rail
The industrial guide roller and fixed bearing rail from PMI France are responsible for absorbing the radial & axial forces and guiding the way for linear motion cutting.

Servo Motors & Drive
The fast-moving servo motor from Schneider, France helps for exact positioning, produces high torque, smooth movement, precise edge processing and achieves perfect control.

Rack & Gear Transmission
Sheet metal laser cutting machine helps to maintain the linear motion from the rotational motion in each locking point for better processing even under heavy load & guarantees smooth traveling with reduced vibration.

Planetary Gearbox
Our high precision straight-toothed planetary gearbox combines high power transmission to produce high torque, gives low noise, less backlash and increases performance in the entire drive.

Electric Relay System
The electric relay system from Schnieder, a French multinational corporation that is capable of managing the complex circuits efficiently and controls the short circuits scenario.

Annealed Machine
The fiber laser cutting machine is perfectly annealed & welded machine frame ensures the fast-moving of the gantry for distortion-free operation. It is excellently resisting the vibration at any specific power given.

Nesting Software
With the help of nesting software simplifies the commanding, provides flexible product programming, offers multiple cutting techniques and automatic calculation bending procedures with an excellent interface. Also, It supports DXF, PLT, AI, Gerber files, NC codes, and many other graphic formats. The nesting and cutting software can operate by simple programming procedure for all complex shapes, command the cutting directions and can achieve the cutting production conveniently.
