The profile bending machine is simplistic material forming equipment, used to create the desired bend from the aluminum profiles, aluminum rolls and channelium rolls. It has cutting & bending as the major function with the goal to avoid the defects, power to fight against the fatigue failure & collapse of the material, the overall process is very simple and tooling to adapt for the operators. A profile bending machine can bend at a variable angle, easiest to control, more precise, highly repeatable and relatively affordable bending system.

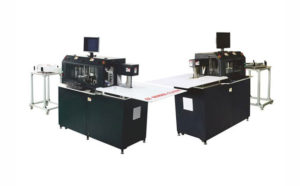

Model: Channelume Bender
| Model | BPI Channelume Bender |
|---|---|
| Motor | Servo |
| Major Function | Cutting, Bending |

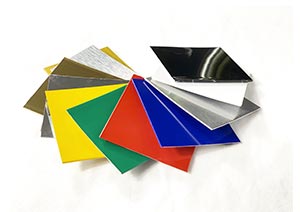

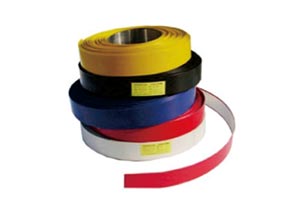

| Bending Material | Aluminium Profiles, Aluminium Rolls, Channelium Rolls |
| Material Height | 50mm to 110mm |
| Material Thickness | 0.4 - 1.0 mm |
| Maximum Bending Angle | 120 |
| Min Radius For Circle | R10 |
| Operating System | Windows 7 (32bit), Windows XP |
| Print Interface | USB 2.0 |
| Power Specification | AC 220V, 50 or 60 HZ, 15Amp |
| Operational Environment | Temperature 20°C 40°C Humidity 20% 80% |
| Supported Software | Corel Draw / illustrator / Autocad |
| Weight | 500 kg |
| Dimension Machine | L2020x W520 X H 1820mm |
| Dimension Physical Layout | L4900 X W1000 X H1900mm |
The software assists to read the bending pattern, interprets the file, ensures the accuracy of the bent component and performs the operation at the corresponding angle based on the instruction to get the perfect results. It supports the designing software Illustrator, Coreldraw & Autocad and the operating system is Windows.
The high-speed hybrid servo motor drives the machine, controls the functions and provides continuous running and keeps fast processing. The linear rail system guides the sliding motion in linear movement, enhances the consistent operation and saves the material from deformation.
All the machinery parts are technically superior and perfectly engineered to handle a heavy load, consuming less electricity and minimum maintenance. They are found to be simple for the operation, have less noise, vibration-free and designed to make the settings based on the requirements of the industry.
