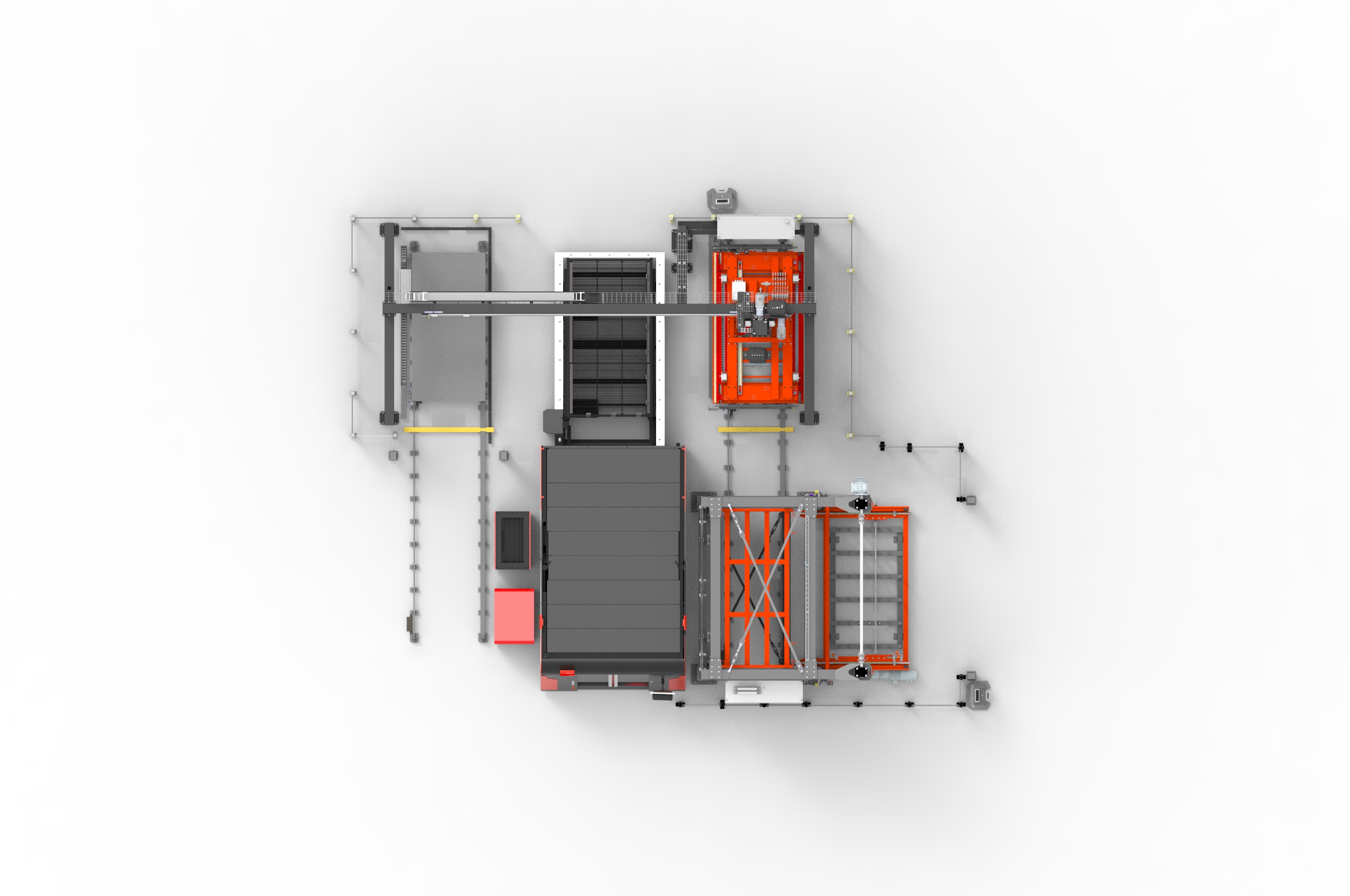

Plate And Tube Laser Cutting Machine

Dual-use For Both Sheet & Tube Cutting

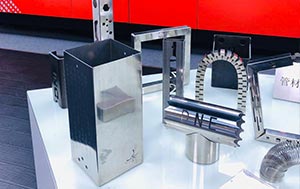

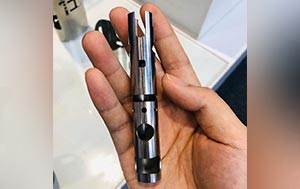

Our integrated plate and tube laser cutting machine is specially designed to cut pipes in different shapes such as round tubes, square tubes, oval tubes, rectangular tubes & irregular tubes and also metal sheets in various materials such as carbon steel, stainless steel and aluminum alloy etc. It is equipped with the dynamic operation, one machine with multiple functions, easy to switch from one operation to another and suitable for comprehensive processing. The perfect industrial design with automatic blanking function to avoid human intervention & increases the operator.

Laser Power: 6000W – 15000W

Functions & Features

In a plate and tube laser cutting machine, the automatic pneumatic chuck is designed to realize quick clamping which rotates by motor, driving the workpiece for the processing and can produce different clamping forces. It can hold thin-walled tubes & also heavy-duty pipes, has higher repeat positioning accuracy and equipped with an automatic centering chuck in the rear & front end.
The laser with automatic focus function position calculates the focal length on its own with a pointer and detects the material then calibrate the length. It shortens the perforation time, no need for manual focusing that saves a lot of time, significantly increases the cutting effect of the product and makes the operation simple & convenient.
The CAD nesting software helps to use less raw material and saves more metal by inputting the accurate design. It creates the nests, makes the parts ready for the cutting and the supporting file formats are DXF, PLT, AI & other graphics formats.

Technical Specification

Model	D-SOAR Enclosed With Side Rotary
Laser Source	Imported original fiber laser source
Laser Power	6000W / 8000W / 10000W / 12000W / 15000W
Working Stroke	1500x3000 / 1500x4000 / 2000x4000 / 1500x6000 / 2000x6000mm (Actual working area prevails)
Max. Cutting Speed	Depending on metal type and thickness
Power Supply	380V/50Hz/60Hz/60A
Footprint Size	9000x5000mmas per the working stroke of 1500x3000mm

Stability 95%

Cutting Accuracy 99.99%

Durability 97%

Major Components

Fiber Laser Source

IPG (Germany)

Industrial Guide Rail

PMI (France)

Servo Motors & Drives

Schnieder (France)

Hellical Rack & Gear

WMH (Switzerland)

Planetary Gearbox

Neugart (Germany)

Electric Relay System

Schnieder (France)

DNE Bsytronic Head

Bystronic (Swiss)

Components of The Machine

Laser Source
The IPG fiber laser source generates laser light and provides a quality laser beam & efficient energy that causes instant melting or evaporation for cutting at the fastest speed with the lowest cost.

Servo Motor
The high-accelerated servo motor drives the machine at high speed, generates high peak constant torque and operates the machine with good efficiency.

Annealed Machine
The machine frame is made up of solid steel plate by using precise welding technique, increases ductility, processed under annealing and destressing treatment and produces error-free operation.

Reducer
It is from Neugart, produces the speed needed for the operation, adjusts the speed and reduces gears misalignment on both the input & output shafts.

Professional Pipe Cutting System
The plate and tube laser cutting machine has a dedicated high-end pipe cutting numerical control system that gives perfect operation, highly reliable, has standard cutting function and gets the exact pattern.

Cooling System
The cooling system has an overheat alarm protection system to avoid thermal deformation during operation and secure the material. It keeps the temperature constant, ensures normal processing, protects from the heat-affected zone and improves the machining efficiency. It saves factory space, low energy loss, stable cutting quality, provides extremely high stability and cost-effectiveness at the same time.
