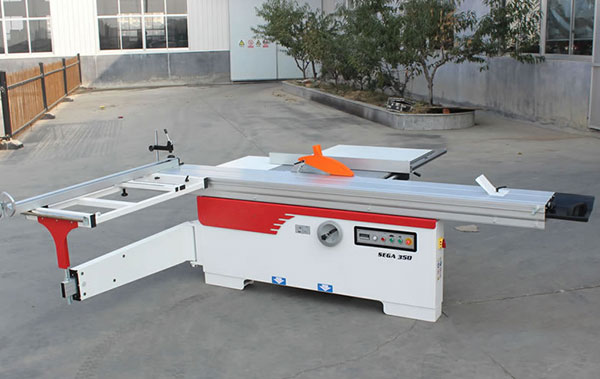

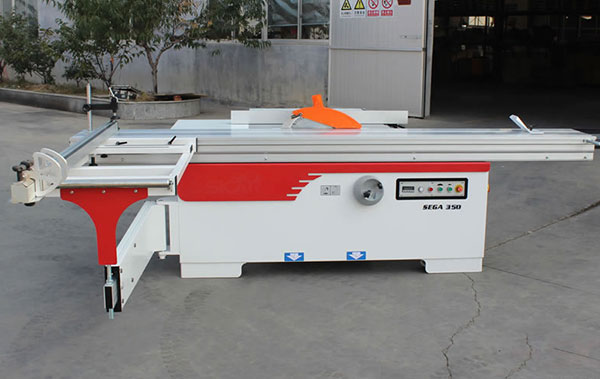

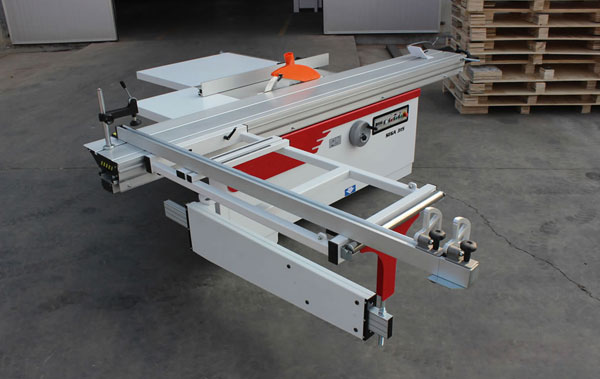

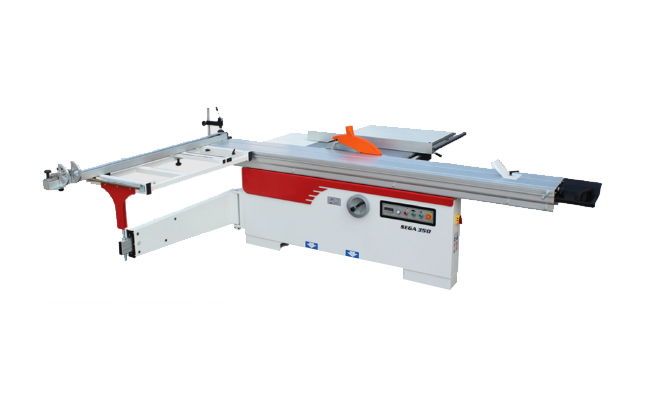

Panel saw sega 350 is used to cut a large panel of wooden material into a specific size of small sections & pieces. It is equipped with the highest quality sharp saw blades offers the finest cut, corrosion-resistant and designed to cover a wide range of different industrial applications & performance requirements. The machine is extremely tough, powerful, durable, proven standard components and can operate with high possible accuracy. It is versatile to perform various woodworking projects and can make rip cuts. crosscuts, miter cuts, straight cuts & other types of cuts with ease.
Model: SEGA350
| Panel Saw | Unit | Sega350 |
|---|---|---|
| Blade diameter | mm | Φ350xΦ30 |
| Main blade speed | r.p.m. | 4000 |
| Scoring blade diameter | mm | Φ120xΦ20 |
| Scoring blade speed | mm | 8000 |
| Max depth of cut at 45° | mm | 92 |
| Max depth of cut at 90° | mm | 120 |
| Max rip capacity | mm | 1250 |

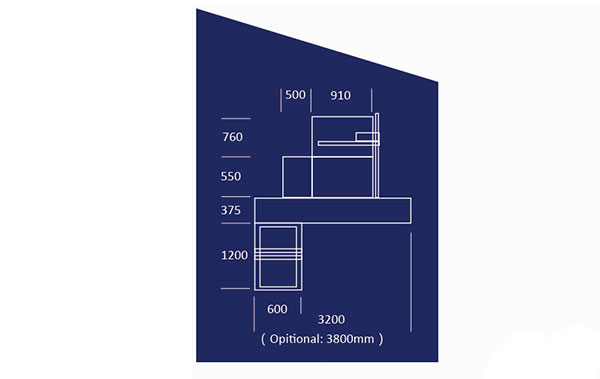

| Sliding beam size | mm | 3200x375 |
| Main table size | mm | 910x550 |
| Main extend table size | mm | 910x760 |
| Side extend table size | mm | 500x550 |
| Dust Extraction Outlet | mm | Φ120 |
| Main motor output | HP - KW | 7,5-5,5 |
| Scoring motor output | HP - KW | 1,0-0,75 |
| Net/Gross weight | kg | 610/710 |

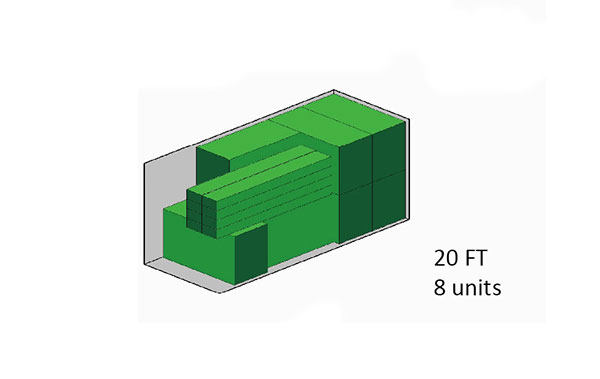

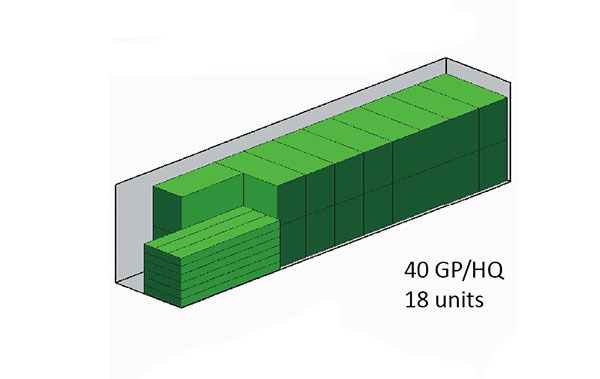

| Machine packing size | mm | 2220×1030×1150 |
| Sliding table packing size | mm | 3560×420×210 |
Optional Accessories | Unit | Sega350 |
| Single-phase main motor | HP - kW | 4,0 - 3,0 |
| Single-phase scoring motor | HP - kW | 0,75 - 0,5 |
| Dimension Carriage 2800mm | mm | 2800x375 |
Cutting Blades

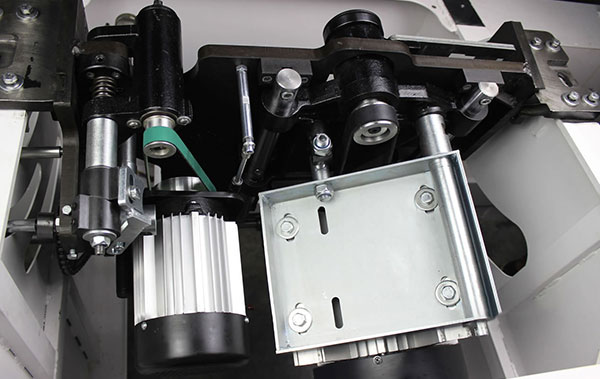

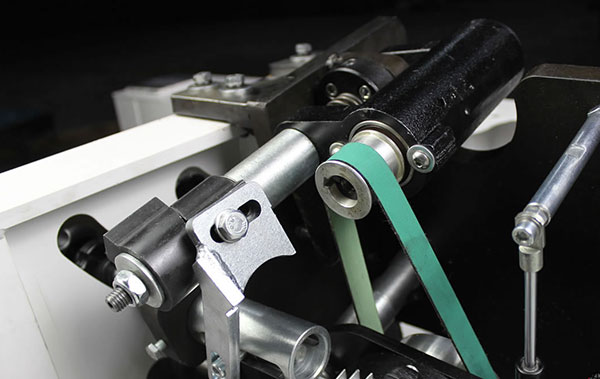

The main blade has a perfect sharp teeth configuration to make clean cuts and fulfills the entire cutting requirements. The scoring blade is present in front of the main blade to cut off the kerf & avoids chipping and riving knife safely separates the wood into two & prevents kickbacks.
Rip Fence
It guides the material to make a rip cut and runs parallel to the blade to get straight processing without deflection. The panel saw is having a micro-adjustment system to control the position of the workpiece. The crosscut fence in the sliding table holds the material and helps for the angle cuts, repetitive cuts & miter cuts.
Dust Collector
In the panel saw, the dust collection outlet is connected to the table to collect the sawdust produced from the operation and helps to keep the workspace neat & clean. It makes the air free of dust & debris through dust extraction vacuums with great efficiency.
