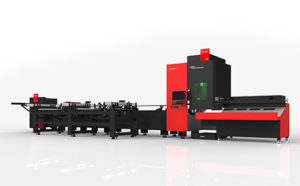

Laser Tube Cutting Machine Fully Automatic

Increased Advancement In The
Tube Processing

The fiber laser tube cutting machine fully automatic, can cut the simple or complex material parts and has the ability to process various shapes, sizes & thicknesses of profiles. Each finished workpiece offers the precise edge quality, eliminates additional processing, highly flexible and realizes the best usage of tubes & profiles. It has the ability to provide the perfect solution, positively impact the production process, has short setup times, very good accessibility with many functions that make part handling quick and easy.

Laser Power: 3kW – 12kW

Functions & Features

The pneumatic chuck has both front & rear chuck to clamp different kinds of tube shapes such as a square tube, round tube, elliptical tube, flat tube, triangular tube, I-beam & other materials. Equipped with the pressure holding function for accurate clamping force, avoids accidental falls and automatically adjusts various materials based on the diameter & wall thickness.
The integrated fully automatic loading system is an excellent solution for the loading of material without making an interruption. It saves more time, handles the material safely, gives better load capacity and increases throughput of the machine. The auto-focus laser head is designed to calculate various focal lengths and prevents deformation of output.
In a fiber laser tube cutting machine, the nesting software makes the programming easy, calculates the parts and nests the shapes precisely that save more raw material from wastage. It assists to finish the cutting operation reliably, offers multiple cutting techniques and supports various graphics file formats. It has fully automatic loading & unloading which does not involve human intervention with a stable feeding system, gives more convenience and saves more cost.
The dual temperature auto-tracking cooling system has an overheat alarm indicator to protect the material from thermal affection and controls the temperature. The dust extraction device & slagging system removes the dust produced during the operation and keeps the environment clean.

Technical Specification

Model	D-FAST_FCCDG_GZ_
Laser Source	Raycus
Laser Power	3kW to 12kW(optional)
Tube Material	Stainless steel, Carbon steel and other material tubes in round, square, rectangular, angel steel, “U” shape, “I” shape, other special tube
Cutting speed	Determined by metal type and thickness
Tube Length	3000mm, 6000mm (Optional)
Working Stroke	Tubes φ15-220mm,Square tubes 15×15-150×150mm
Positioning Accuracy of Axes X & Y	±0.05mm
Repositioning Accuracy of Axes X & Y	±0.03mm/1000mm
Maximum Positioning Speed of Axes X & Y	240 Round/Min
Range of Axes A1 & A2	N×360°
Positioning Accuracy of Axes A1 & A2	±0.05º
Repositioning Accuracy of Rotation Axis U	≤5 Arc
Power Supply	380V/50Hz/60Hz/60A
Footprint Size	9000x5000mmas per the working stroke of 1500x3000mm

Stability 95%

Cutting Accuracy 99.99%

Durability 97%

Major Components

DNE Bsytronic Head

Bystronic (Swiss)

Fiber Laser Source

IPG (Germany)

Servo Motors & Drives

Schnieder (France)

Hellical Rack & Gear

WMH (Switzerland)

Planetary Gearbox

Neugart (Germany)

Components of The Machine

Laser Source
It provides the most valuable & efficient laser beam transmission over the head for fiber laser cutting machine and allows extreme results with high quality.

Reducer
It works with a large amount of accuracy, has low backlash, avoids misalignment of gears, not affected by vibration or resonance issues and highly robust.

Servo Motor
It moves the machining part, delivers maximum continuous torque, ability to run more smoothly, is highly efficient, gives great precision, controls the speed and has ultimate flexibility.

Pipe Cutting System
The professional numerical control system as pipe cutting in fiber laser tube cutting machine that gives a simple programming procedure to cut the desired angle & shape and achieve the precise cutting production conveniently.
