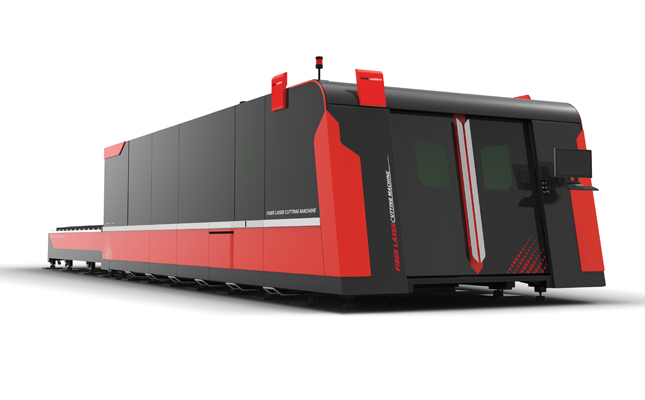

The ultra high power fiber laser cutting machine has become the representative of high-efficiency metal cutting for the materials such as stainless steel, carbon steel, mild steel, galvanized steel and aluminum plate etc. With the implementation of fiber laser technology, improving the production widely for various metal processing operations. It moves the industry towards a larger format, perfect laser stability with an laser source, extremely reliable and maintenance-free with a highly integrated system.
Laser Power: 8000W – 20000W
| Model | D-SOAR |
|---|---|
| Laser Source | IPG Fiber Laser Source |
| Laser Power | 8000W 10000W 12000W 15000W 20000W |
| Working Stroke | 2000x4000 / 2500x6000 / 2000x6000 / 2500x8000mm (actual size shall be prevail) |
| Max. Cutting Speed | Depending on metal type and thickness |
| Power Supply | 380V/50Hz/60Hz/60A |
| Footprint Size | 9000x5000mm as per the working stroke of 1500x3000mm |
Fiber Laser Source
The IPG fiber laser source of the laser cutting machine helps to emit the laser beam for the instant melt or evaporation of the material and takes the processing level to a large extent.
Servo Motors & Drives
The servo motor works continuously to drive the operation stably for other parts delivery efficiency, producing huge torque and increasing the utilization rate of the machine.
Gear & Rack
The helical rack & gear makes the overall operation of the machine be on the linear motion at the rack from the rotational motion that ensures the processing strength away from misalignments.
Speed Reducer
The straight-toothed planetary gearbox can determine the speed, controls the level of speed needed for the functional operation and protects the material from deformation.
Laser Cutting Head
The laser cutting head is moving over the material to cut out the desired shape from the metal. The extended cutting performance with an optimized beam which is guided by the head gives high-precision output.
Controller System
The high-performance control software assists to perform the various functions with high flexibility & stability. It automates the graphics to cut and can feed multiple process settings.
Dust Collector
The independent dust extraction system & slagging system takes the dust produced by cutting operation and helps to keep the environment clean. The linear guide rail guides the carriage with stable consistency, matching the required speed and making continuous cutting at full power.
