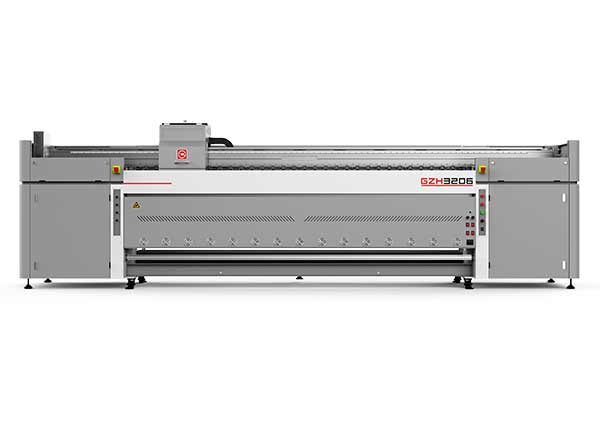

Large Format Printer 3.2 Meter

Creates Quality & Long-lasting Printing

Our large format printer 3.2 meter 6 heads is one of the best wide-format inkjet printers that give accurate sign & display graphics. It offers a unique print quality in the grand format segment and a perfect wide machine that is completely in sync with the diverse requirements of the well-developed market. An industrial printer combined with the digital advantages, suitable for a large range of media types such as banner, frontlit, backlit and vinyl etc. It comes in four colors C, M, Y & K stands by its ability to enhance color vibrancy with advanced color management software.

Model: GZH3206SG / GZH3206SG

Functions & Features

A negative pressure recirculation system gives durability to the printhead, prevents the overflow of ink and enhances spot color reproduction without losing the quality of the image & avoids more ink usage. Superior print quality across the entire machining lifespan, less maintenance and low operational wastage.
The large format printer 3.2 meter is equipped with pre, mid, post and extended heaters with an intelligent QT drying system accelerating the drying time of the printed materials. Quickly dries the ink on the media and enables beautiful print output without a grainy appearance. Enables printing on a wide media up to 3200mm width for saving energy, cost & time and handles a broad scope to print for indoor & outdoor applications.
The 2X power Panasonic servo system works for exceptional performance to drive the machine in the exact motion and it is compact, lighter weight & provides higher torque at high speed. The machine frame structure, durable aluminum beam and beam holders enable fast throughput of operation, avoid material waste and deformation of output.
The print head adjusts the height on its own based on the thickness of the material before starting the printing process and avoids crashes by using the sensors of the anti-collision detector system & to decrease the wastage of media. The ink purge system cleans the nozzles to maintain the constant printing & prevents the printhead from ink drying inside and protects from dust that might cause damage to it.

Technical Specification

Model	GZH3206SG (25PL)	GZH3206SG (10 PL)
Printhead	6 Starfire 1024 staggered in 3 rows	6 Starfire 1024 staggered in 3 rows
Ink	C.M.Y.K solvent / eco-solvent	C.M.Y.K solvent / eco-solvent
Ink supply system	GnTek Negative Pressure Recirculation System	// //
Printing width	Max. 3200mm	// //
Media type	Banner, Frontlit, Backlit, Vinyl, Film...	// //
Media delivery system	Automatic media feeding and taking up system with separated taking up system	// //
Drying system	Pre, mid, post and extended heater plus intelligent QT drying system	// //
Printing speed	300 X 400 dpi 375 m2/ h	300 X 400 dpi 380 rn2/ h
Printing speed	600 X 400 dpi 253 m2/ h	600 X 400 dpi 258 m2 / h
Printing speed	300 X 600 dpi 191 m2/ h	300 X 600 dpi 195 m2 / h
Data interface	External: USB2.0; Internal: High-speed SCSI	// //
Working environment	Temp. 23°C - 29°C , Humidity: 50% - 80%	// //
Software	Onyx...+GZ control console	// //
Power	50Hz/AC,220V+10°/o 13A(printer)+16A(thermal drying system) +	// //
Power	16A (spearated taking up system)	// //
Printer / package size	L X WX H(mm): 5500 X 1100 X 1670 / 5600 X 1550 X 1880	// //
G.W/N.W	1512kgs / 1262kgs	// //

End Products

Product Video

Major Components

Starfire-Head

Heads Staggered in 3 Rows

Separate taking up system

4 heaters, IR drying system

Super strong heavy duty body

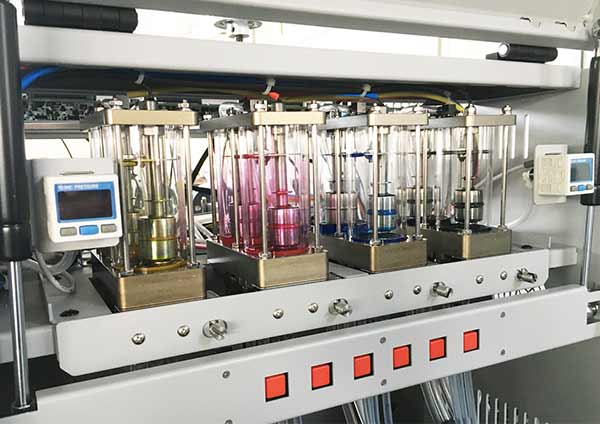

GnTek recirculation solution

Components of The Machine

Dimatix Printhead
The dimatix 6 Starfire printhead staggers in 3 rows with safety protection is highly productive, has 1200dpi printing quality mode, native ink drop size of 25pl and provides optimal results at high print resolutions.

Redijet Recirculation
The redijet recirculation technology continuously circulates the ink at the nozzle via printhead and improves startup. It increases the inherent production capability, reduces downtime and maintenance time.

Onyx / PhotoPrint
The RIP software is responsible for interpreting the input file, comes with a lot of advantageous tools for a better printing workflow and produces the raster image from the design document for the output.

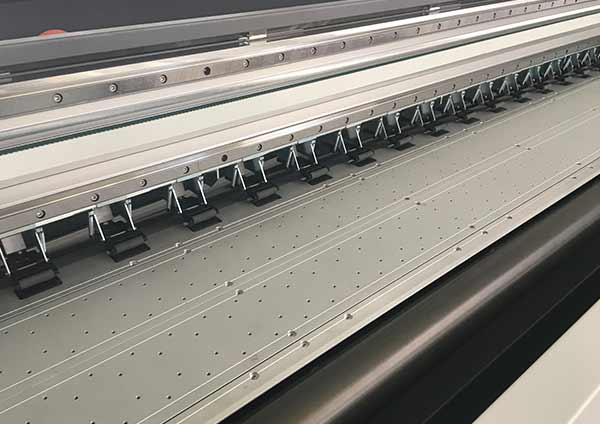

Feeding System
The large format printer 3.2 meter has an automatic taking up and feeding system installed with tension bars to avoid the small slight misalignment of holding the media even in high-speed print. It helps for a lengthy printing operation, can adjust the material according to the required size, length and graphic design file input.
