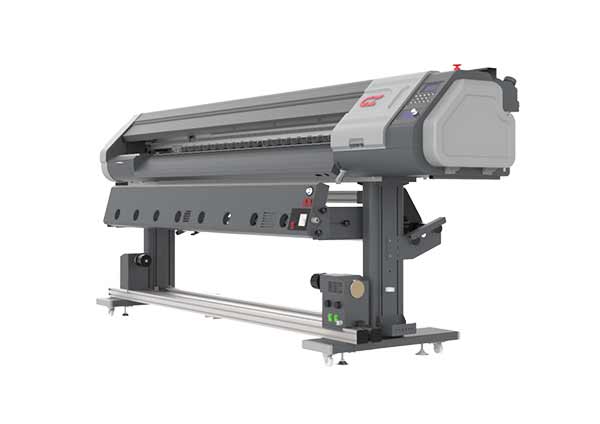

Our large format printer 1.8 meter Epson DX5/DX7 heads enable printing on different media such as coated PP, duratrans, flim, vinyl, frontlit and backlit. It is durable, designed for high production capacity, a strong attribute associated, functions with rapid speeds and produces accurate color reproduction & transition for printing the media. It prints & shows the precise detail output in an attractive format with unmatched versatility, flexibility and reliability. Easy to use due to the smart screen & control panel where can easily find the necessary settings and avoids over-expenditure with convenient functions.
Model: A1802S / A2602S
| Model | A1802S | A2602S |
|---|---|---|
| Printhead | Epson DX5/DX7 | Epson DX5/DX7 |
| Number of Printhead | 1 | 2 |
| Print Width | 1800mm | 2600mm |
| Printing Speed Draft | 4 Pass 16m2/hr | 4 Pass 32m2/hr |
| Printing Speed Standard | 6 Pass 12m2/hr | 6 Pass 24m2/hr |
| Printing Speed Quality | 8 Pass 8m2/hr | 8 Pass 16m2/hr |
| Max. Media Width | 1850mm | 2650mm |
| Max. Media Weight | 50 kg | 70 kg |
| Media Type | Coated PP, Duratrans, Film, Vinyl, Frontlit, Backlit | // // |
| Media Thickness | 4mm (Max.) | // // |
| Heater System | 3 Way intelligent heater | // // |
| Media Feeding | Equipped (Auto Media & Take up System) | // // |
| Ink Type | Eco-Solvent Ink (C, M, Y, K) | // // |

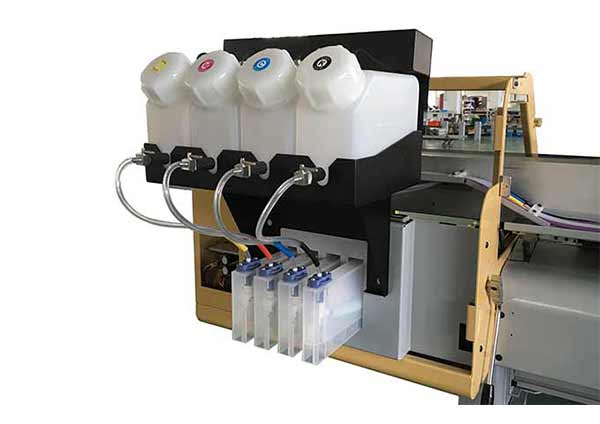

| Ink Capacity | 1 Litre bottle of each color (Bulk system) | // // |
| Auto Cleaning System | Anti-Clogging Flash Function & Capping System | // // |
| Data Interface | External: USB2.0+ | // // |
| Power | 220V / 230V 50/60HZ | // // |
| Working Environment | Temperature 20° C - 28° C Humidity 20%-80% | // // |
| Compatible RIP Software | Photo Print (Latest Version) / Onyx | // // |
| Dimension Machine | L3100x W860 X H1300mm | L3900x W860 X H1300mm |
| Dimension Package | L4100 X W960 X H1400mm | L4900 X W960 X H1400mm |
Epson Printhead
The industrial leading Epson printhead with a safety protection system gives good print quality at high speeds, durability, high-resolution output with 2880dpi, the ink droplets are maximum 3.5pl and ensures the ink flow is perfect via nozzle for the printing.
Onyx / PhotoPrint
A large format printer 1.8 meter that uses RIP software makes the digital image created by using graphics software such as CorelDRAW, illustration or Photoshop into a ready-to-print output file. It saves media, ink costs, more efficient workflow, faster print processing and increases overall productivity.
Capping & Wiping System
The main function of the automatic capping & wiping system is to protect the print head by effectively avoiding the clogging on it. It takes out the remaining contaminated ink from the nozzle to clean it because that may affect the print quality and helps for outstanding performance.
Anti-collision System
The intelligent anti-collision system installed on both sides assures the efficiency of high end-product results without any crash of head with the material. The take-off system adopts the weight of the media effectively for superior finishing and large volume.
