The large format printer 1.6 meter Epson DX5 printhead is suitable for a diverse range of printing needs without having a limit of production. Results in the bright print & vivid color with perfect color gamut, has simple heat transfer process to operate with high efficiency & short time. It has faster operation speed, higher resolution, a trouble-free process and easier maintenance. The machine is equipped with the latest design & technology with A grade spare parts, beam & frame structure is made of heavy-duty material to give extremely precise output.
Model: C1601
| Model | Thunderjet B-JET C1601 |
|---|---|
| Print Head | One Epson DX5 / DX7 with safety protection system |
| Technology | Piezo Variable dot (grayscale) |
| Print Width | Max 1590 mm |
| Printing Speed Draft | 17.7 m2/h |
| Printing Speed Production | 13.3 m2/h |
| Printing Speed High-res | 9.7 m2/h |
| Printing Speed Photo | 8.2 m2/h |
| Max. Width | 1640 mm |
| G.W./N.W. | 285kgs/ 200kgs |
| Media Type | Coated PP, Paper & Poster, Film, Vinyl, Frontlit, Backlit |
| Media Thickness | 4mm (Max.) |
| Heater System Internal | Intelligent Infrared Heating Control System & Digital Display |
| Heater System External | IR Drying Sensor system for low power consumption |
| Media Feeding | Equipped (Auto Media & Take up System) |
| Ink Type | Eco-Solvent Ink (C, M, Y, K) (2 years outdoor durability) |
| Ink Capacity | 1/5 Litre bottle of each color (Bulk system) |
| Ink Supply System | Bulk Ink System Cartridges with Alarm Indicator System |
| Auto Cleaning System | Anti-Clogging Flash Function & Capping System |
| Data Interface | External: USB2.0+; Internal: High Speed SCSI |
| Working Envoironment | Temp. 23°C - 29°C, Humidity: 50%-80% |
| Software | Photo Print (Latest Version) / ONYX....+ GZ Control Console |
| Power | 50Hz / AC, 220V± 10% 3A (Printer) + 10A (IR drying system) |
| Dimension | LXWXH(MM): 2718 X 780 X 1442 |
Epson DX5 Head
The Epson DX5 / DX7 printhead with a safety protection system configured in 4 color modes C, M, Y & K. It has an anti-collision nozzle, relatively affordable and produces a fine droplet & clear printing effect.
Onyx / PhotoPrint
In a large format printer 1.6 meter, the RIP software interprets the files and processes the design file fast for greater time save and to increase productivity. It has an effective conversion of input design to a raster image for the output.

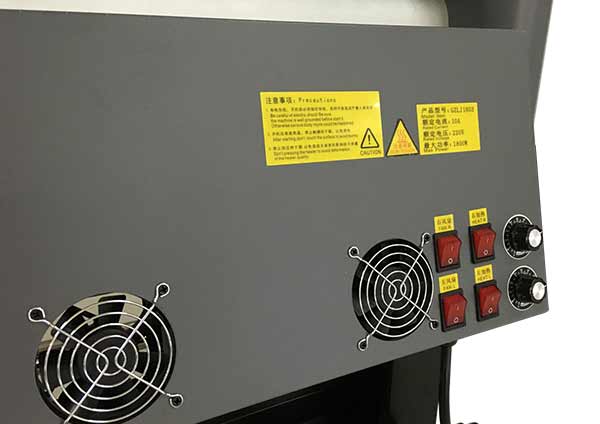

Infrared Heating & Drying Sensor System

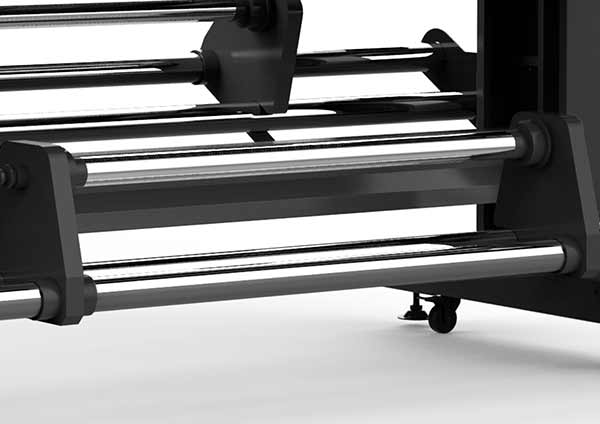

The large format printer 1.6 meter has an infrared heating control system & drying sensor system, an ultra-efficient IR solution that easily cures the ink, fast-drying the printed picture, reduces the wait time, improves the printing quality and avoids the smudging of ink. The automatic take-up system is particularly designed to adjust the conveyor belt and boost the efficiency of the output.
Ink System
It has a 1.5 litre bulk ink system to supply the ink from nozzles independently, ensuring high-speed printing, reducing the printing expense and printing on the media without any interruptions of changing the cartridge. The alarm indicator system monitors the ink level and informs prior if there is any shortage of ink for the process.
