The hot & cold lamination machine is used to protect the printed material and will be very beneficial for your business needs in laminating. It works very fast as the time for the setting-up is low, can operate conveniently, does not need to wait for a long time and requires less maintenance. The output gives better results as there is no occurrence of waves, blisters or curling to the laminated product and safer to use as there is no chance of burning. This process avoids spills, smudges & tears due to rain or any other disaster and none of these hazards would affect material quality.
Model: BPI-1600-F1
| Model | BPI-1600-F1 |
|---|---|
| Max Laminating Width | 1630 mm/64 |
| Max Laminating Thickness | 28 mm/0.9 |
| Speed | 12m/min |
| Max Temp | 120°C / 248°F |

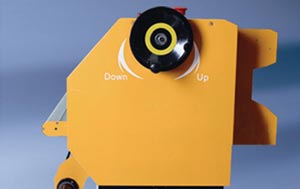

| Up & Down | Hand crank |
| Heating | infrared |
| Warm up time | 10-15 min |
| Power consumption | 0.8-1 kw/h |
| Power input | 2500 w |
| Volt | 110V/200V |
| N.W | 210 kg |
| Roller | Silicon |
| Emergency button | 2 |
| Laser eye | Yes |

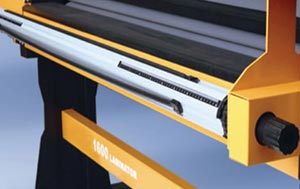

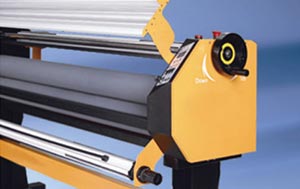

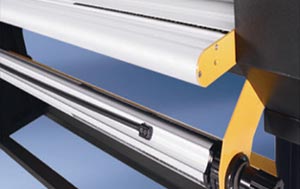

The hot & cold lamination machine is equipped with a high release silicone roller that assists to feed the media for the operation, makes the cleaning process simple, can easily accommodate mounting up to 20mm laminating thickness and maximum laminating width up to 1520mm. It has the capacity for roll-to-roll operation and an adjustment knob to fix it according to the thickness of the material.
The film tension adjustment is a comprehensive system that ensures a professional finishing job without the risk of wrinkles anymore.

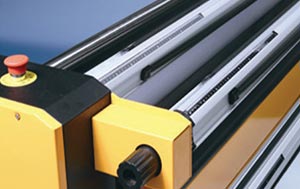

The automatic shutoff emergency stop buttons are present on all the corners of the machine that acts as a protector to stop the movement of the roller immediately when there is any misalignment in the process. The footswitch is used to operate the machine, helps for hands-free operation and also can stop the operation by pressing the switch using the foot.
