A flatbed UV printer 2.5 meter x 1.3 meter is a high-performance UV inkjet printer model that offers high image quality and extreme mechanical accuracy when printing in addition to class-leading productivity & stability. It gives high-definition printing at 1200dpi and the ability to automate material transport with consecutive printing technology to support massive production. Experience the fast print speed in a variety of applications for business growth with its versatile media handling capabilities. It uses Ricoh Gen5 industrial printhead with 3-8 optional configurations as a smart choice for widespread printing requirements.
Model: UV-2513
| Model | UV-2513 |
|---|---|
| Print Head | 3~8 Ricoh Gen 5 printheads |
| Variable Drop Size | 0~21 picolitre |
| Resolution | 720 x 900 ~ 720 x 1200 dpi |
| Curing System | Dual water cooling LED UV curing lamps |
| Ink | UV curable ink |
| Color Combination 1 | CMYKLcLm+WW (Standard) |
| Color Combination 2 | CMYKLcLm+WW |
| Color Combination 3 | CMYK+WW+WW |
| Color Combination 4 | CCMMYYKK |
| Color Combination 5 | CMYK+WW+VV |
| Ink Supply System | Auto ink supply system with dual negative pressures (white ink tank has stirring unit) |
| Ink Tank | 1500ml |
| Media Thickness | Max. 100mm |
| Media Weight | Max. 50kgs/m2 |
| Media Type | Acrylic, Aluminum sheet, Foam board, PVC board, Leather, Glass, Wood, Ceramic tile, T-shirt, etc |
| Table Size | 2600 x 2000mm |
| Printing Size | Max. 2500 x 1300mm |
| Printing Speed (3 heads) | 720x900dpi 6pass Medium Feather, 10.1m2/h |
| Printing Speed (3 heads) | 720x900dpi 6pass Strong Feather, 9.3m2/h |
| Printing Speed (3 heads) | 720x1200dpi 8pass Medium Feather, 7.6m2/h |
| Data Interface | External: USB2.0; Internal: Fiber Optical |
| Working Environment | Temp.20?~30?, Humidity:35%~65% |
| Software | ColorGate+GZ control console |
| Power | Single-phase, 50/60Hz, AC220V+10%10A (printer&UV controller) +16A (Vacuum system) |
| Installed / Package Size | LxWxH(mm): 4350x1920x1350/ 4480x2140x1560 |
| G.W./N.W. | 1571kgs/ 1160kgs |

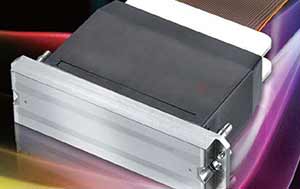

Ricoh Gen5 Printhead
The 3-8 Ricoh Gen5 industrial printhead adopts a piezoelectric nozzle that is not easy to corrode or block the head, variable ink drop printing maximum up to 20pl, clearly prints the fonts & images and high photo-level accuracy at a maximum resolution of 720 x 1200 dpi.
PhotoPrint
The ripping software is like a printer driver, suitable for the digital printing machines to get the best possible results as high-resolution raster images from the vector images.
Caldera
A flatbed UV printer allows for an increased workflow to process the multiple files at a time, organizes the job lineup to produce a more efficient flow of printing that saves money & time for other tasks and reduces waste.
Servo Motor
The direction driving movement is managed by separate servo motors to assure the exact performance of the printing unit and meets the need for fast response. The dual 400w AC motor drives the head for the Y direction and the X-direction movement, a 750w AC motor is used.
Anti-collision System
A flatbed UV printer has an anti-collision system that protects & avoids damage to the printing head and once it touches the media, the sensor available at the controller switches on to stop the carriage.
Height Detector
An automatic height detector prevents the head from a crash and also saves the media from scratching, adjusts the height according to various media thicknesses and it can detect the material up to the thickness of 100mm.
0-21 Picolitre
With the variable drop size of 0-21 picolitre, can achieve a more vibrant and glossy finish output. Equipped best structure frame with imported processing equipment, delivers spectacular end-product and outstanding durability.
