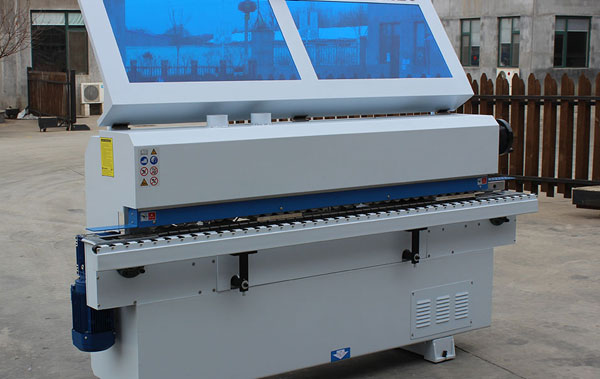

Edge Banding Machine

Ensures Wood Edges Smooth

The edge banding machine is used for the process of sealing the rough edges of wood panels, ensuring that the finished product is durable to increase the product life span and result in a high standard. This industrial grade machine applies the edging tape to the material with hot-melt glue and improves its resilience by providing resistance. It covers up unsightly edges to make a glossy finish to match the sides & top and creates soft sharp angles without any misalignment of a panel on the machine. It allows for stable & reliable working conditions to raise the quality of the output, provides optimal adhesion process and performance to the next level.

Model: EB-220

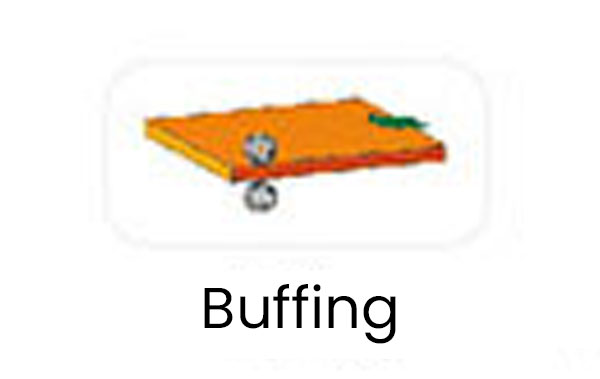

Functions & Features

Technical Specification

ModelEB-220
Thickness of roling edge-banding belt0.4-3mm
Height of roling edge-banding belt12-45mm
Workpiece thickness10-45mm
Air pressure0.6-0.8Mpa
Gross power6kw
Machine outline size2450 x 680 x 1280mm
Weight700kg

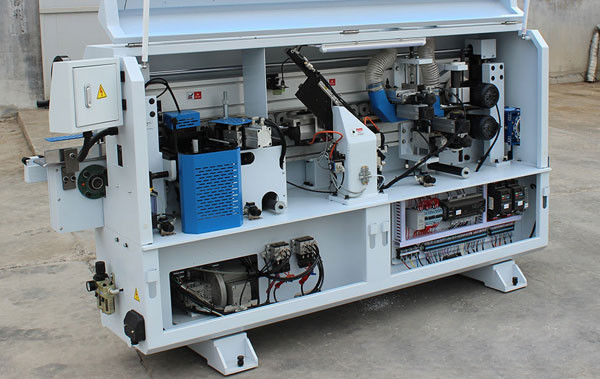

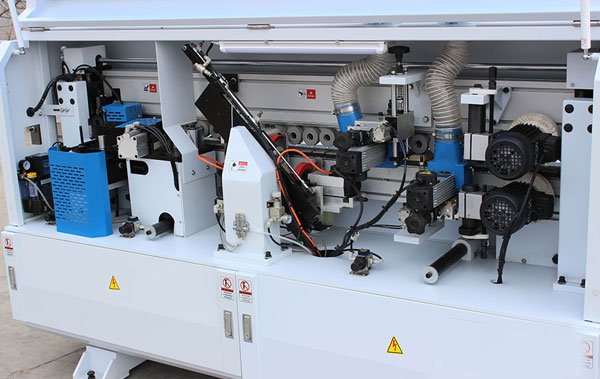

Components of The Machine

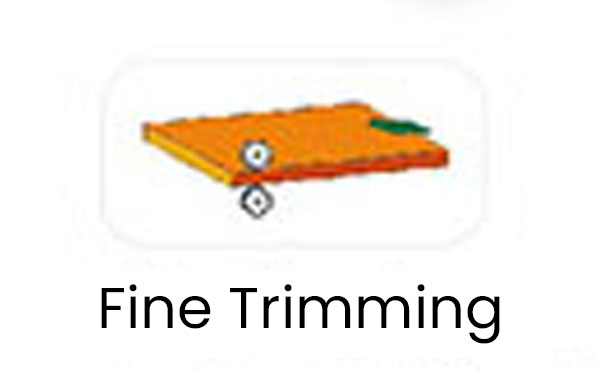

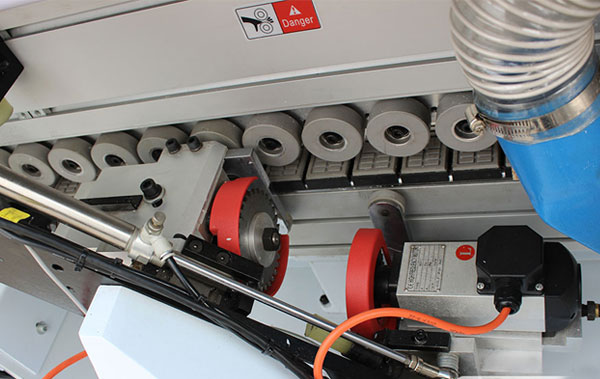

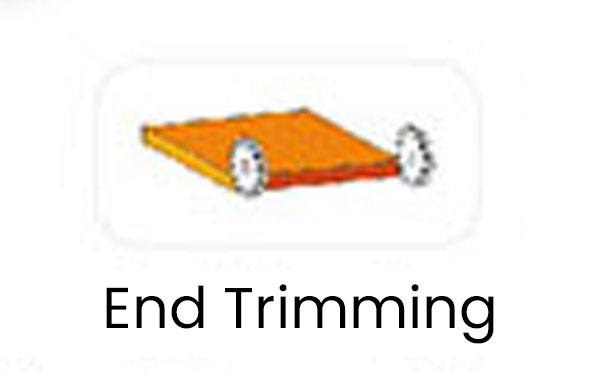

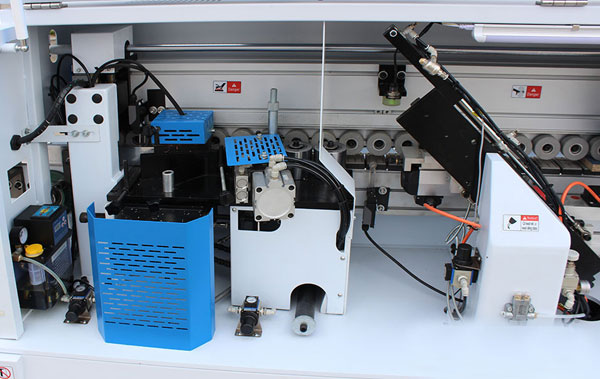

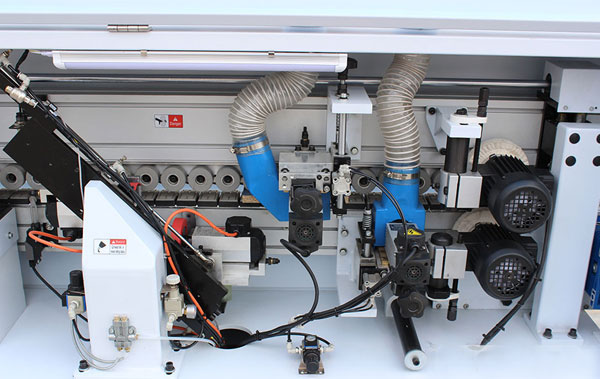

The edge trimming unit eliminates the extra bands on the edge and ensures an excellent look on the sides of the panel. It can easily adjust the required thickness & height of wood according to the requirement and scrapes off the unwanted panel on the front & rear end for seamless output.

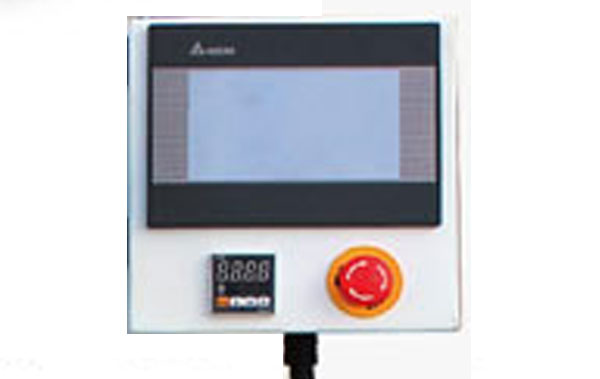

The human-friendly Delta touch panel sets up the processing instruction to form the whole banding parts, has a variety of parameters, can command the unit operation simply and permits the comfortable interaction between operator & machine.

Reference Images & Diagrams
