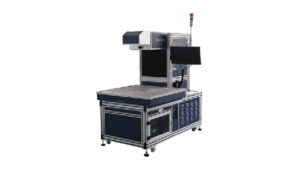

Our dynamic fiber laser marking machine can do the marking on flat, spherical, circular & curved surfaces and this dynamic focusing system makes marking at the correct focal length with the strong & delicate laser beam energy and gives a better marking effect. This machine is compact, flexible, easy operation, minimum maintenance, no faulty in a long time working, brings different processing experiences and fulfills the demands of industrial continuous work. The machine realizes the lighter weight & multifunction together, accurate button control for lifting & adjusting the marking height.
Model: BPI-FL50 / BPI-FL60
| Model | BPI-FL50 / BPI-FL60 |
|---|---|
| Laser Source | DIODE Laser Source |
| Wavelength | 1064nm |
| Laser Power | 50W - 60W |
| Power Stability | <0.5% |
| Focus Facula Diameter | 20 um |
| Marking Speed | 7000mm/s |
| Laser Accuracy | 0.025mm |
| Beam Size | 0.1mm |
| Frequency | 20kHz~100kHz |
| Working Area | 110x110~300x300mm |
| Expect Service Time | At least 5 years |
| Indicating Beam | Red Light |
| Wavelength of indicating Beam | 635nm |
| Laser Head | Sino Scanners |
| Cooling Way | Forced-air Cooling |
| Power Supply | 220V/50Hz/1.5kVA (Customizable) |
| Software | EzCad |
| File Formats | PLT, PCX, DXP, BMP, JPG etc |
| Output Compatibility | AutoCAD, CorelDRAW, Photoshop etc |

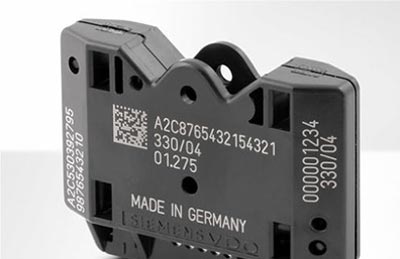

| Marking Varieties | Words, Pictures, Bar Codes, Serial Number etc |
A dynamic fiber laser marking machine has marking control software that is compatible with the output files from various designing software such as AutoCAD, CorelDraw & Photoshop etc. It has excellent operability, directly imports the model to the machine for marking and can adjust the size & position of the data conveniently.
The forced-air cooling way connects the chiller to avoid accuracy errors, cools the laser tube and keeps the machine running well. It reduces the heat caused by long-time working temperature rise to realize the high precision marking on any object.
The software EzCad can freely control the marking parameters, does the change of focal length effectively and suitable for large scan field marking in the range of materials. It has a friendly operation interface and suits many file formats such as dxf, plt, jpg, dxp & bmp etc.
The working table field is up to 300x300mm wide which assists to handle the large marking requirements and can be marked on the multi-level large format material. It eliminates the range deformation and spot deviation from the surface of the pointed material.
