The 2 functions 400B is the combined wood cutting machine, has superior power, reliability, efficiency, guarantees smooth operation every time and provides professional-level accuracy. It can perform functions such as a panel saw for the cutting of wood to meet the different cutting needs and a spindle moulder to shape the panel for an ideal trimming effect with ease. This affordable combination wood cutting machine can do both the table saw & shaping operation perfectly, configured in a single machining unit and only requires little time to switch over from one operation to another.
Model: 400B
| Circular Saw | Unit | 400B |
|---|---|---|
| Working table | mm | 326x1112 |
| Shaft rotation speed | r.p.m. | 4500 |
| Blade diameter | mm | 300 |
| Blade bora diameter | mm | 30 |
| Cutting height 90° | mm | 100 |
| Max. distance between blade and fence | mm | 730 |
| Blade inclination | 0° | 45° |
| Max cutting height 45° | mm | 50 |
| Shaft rotation speed engraver | r.p.m. | 7000 |
| Engraver blade diameter | mm | 90 |
| Engraver blade bora diameter | mm | 22 |
Shaper | Unit | 400B |
| Working tables | mm | 326x1112 |
| Shaft rotation speeds | r.p.m. | 2000 / 3100 / 4400 / 7000 |
| Standard shaft diameter | mm | 30 |
| Spindle lenght | mm | 105 |
| Shaft vertical stroke | mm | 115 |
| Max. tool diameter | mm | 180 |
| Max. tenoning depth | mm | 65 |

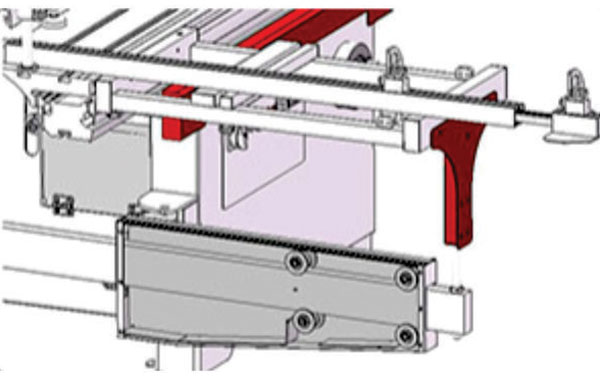

Tenoning Carriage | Unit | 400B |
| Carriage dimensions | mm | 1800x315 |
| Carriage stroke | mm | 1800/2200 |
Standard Accessories | Unit | 400B |

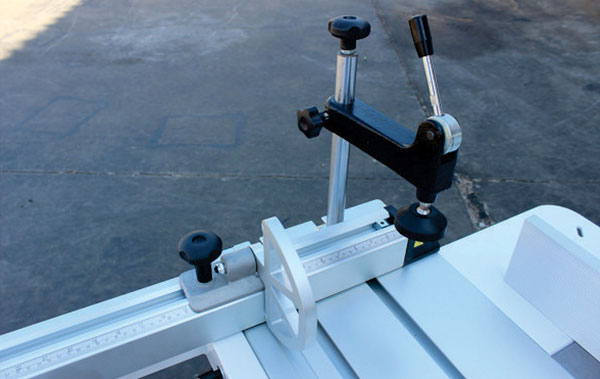

| N°2 clamp lever | - | - |
| Sharper fence | - | - |
| Service wrenches | - | - |
| Table extensions with swinging arms | mm | 860x600 |
| Saw guide | - | - |
| 3-phase motor power | HP - KW | 4,0 - 3,0 |
| Weight | kg | 380 |
Standard Accessories | Unit | 400B |
| Single-phase motor | HP - KW | 4,0 - 3,0 |
| Increasing 3-phase motor | HP - KW | 5,5 - 4,0 |
| Contouring fence | - | - |
| Carriage stroke | mm | 2200/2200 |
| Carriage stroke | mm | 2600/2600 |
| Tenoning with protection shelf | - | - |

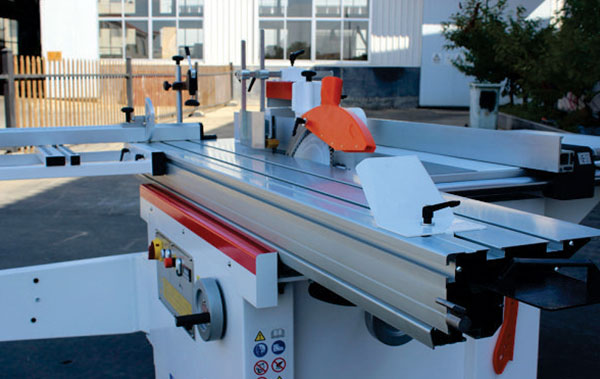

Panel Saw

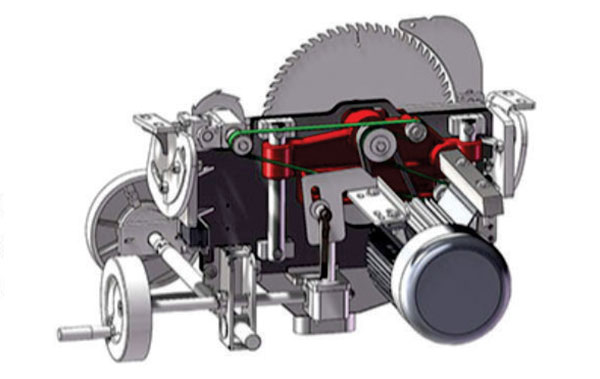

It is used to cut the wooden material at the required size & angle by using the blades & powerful electric motor. The sharp main blade configures for the fine cut in various depths and satisfies the business needs. On the front side of the main blade, a scoring blade is present to remove the kerf & prevent it from chipping.

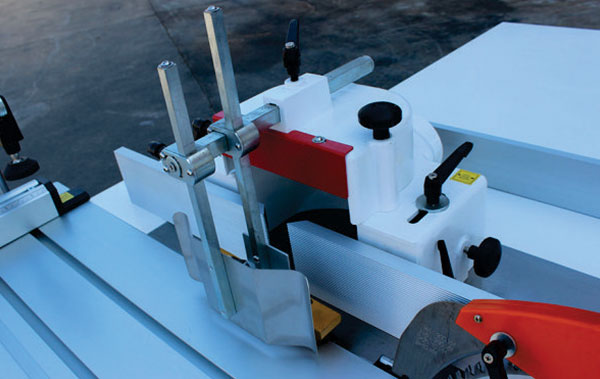

Spindle Moulder

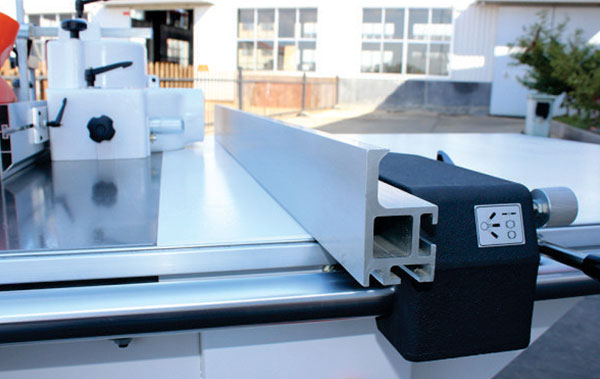

The combined wood cutting machine is equipped with a spindle & tenoning carriage and used for the wood trimming, shaping, moulding, grooving & also having the capability of doing tenoning, the adjustment of angle & height is possible with levers. The micro-adjustment fence helps to set the measurement that can cut the wood straightly, ensure the exact shape needed and provides adequate guidance.
