CNC Hydraulic Press Brake

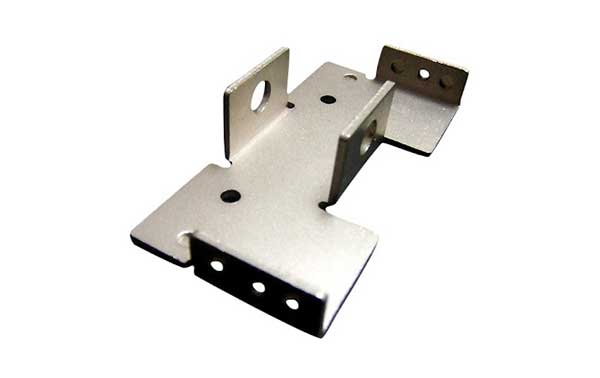

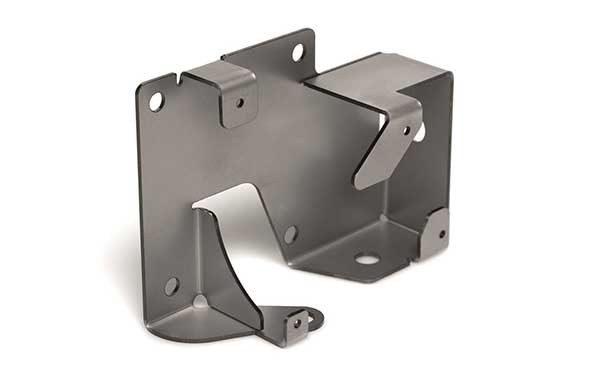

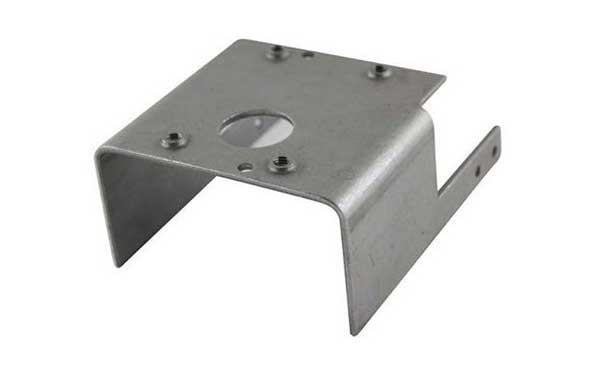

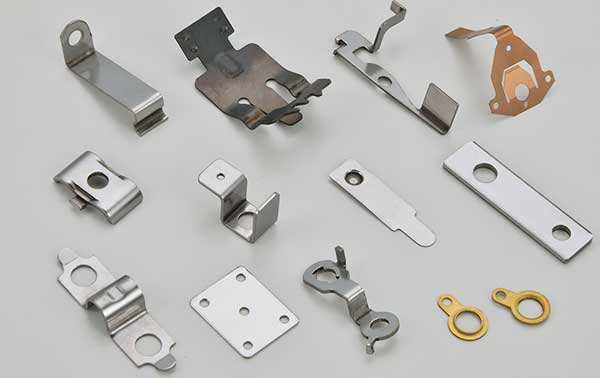

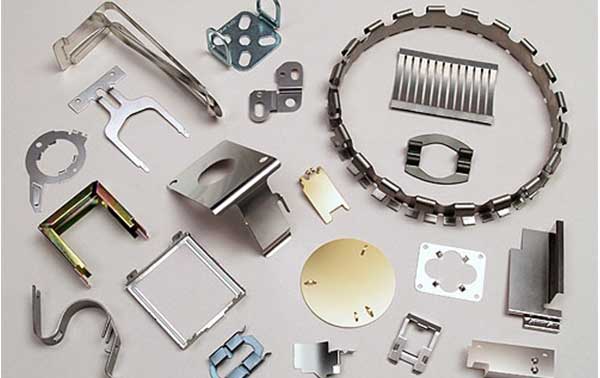

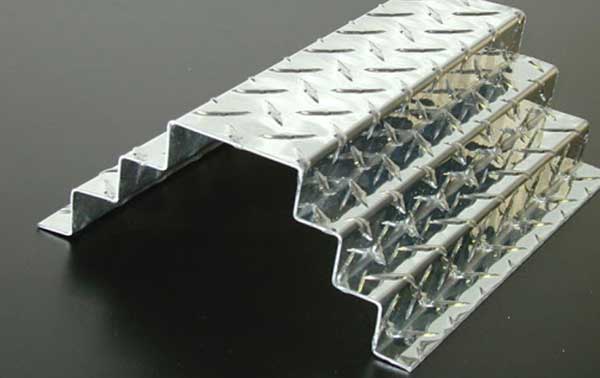

Bends Various Sheet Metal Into Designs

The CNC hydraulic press brake is designed to play an impeccable role in the precise metal forming process that bends the sheet metals to the desired profile and gives different shapes depending on the type of dies which is used. It contains essential parts such as a hydraulic unit, control panel, controller, automatic feeder, ram and annealed frame. It is very decisive in products producing quality, processing efficiency, precision and involves several metal forming operations such as cutting, pressing and bending.

Model: 40T/2500 / 63T/2500 / 80T/2500 / 80T/3200 / 80T/4000

Functions & Features

The CNC hydraulic press brake is highly evolved into advanced machinery powered with hydraulic system and computer-controlled technology to bend the sheet & plate metal with ease for the simple & complex parts. It works by using a punch & die attached which is set at predetermined angles to bend, press or cut into various shapes and forms. The principle relies on the forces applied to the material during a bend.
If the ram starts to press the punch & die against the sheet metal by lower die, it begins to change the shape according to the die set design and offers full force at any stroke position. Allows more control, consistent strokes, delivers precise & high-quality products. It can process various types of metals and a variety of bends & unique structures and permits to do versatile applications.

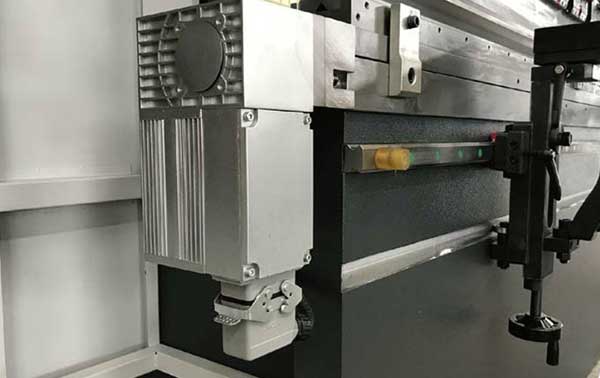

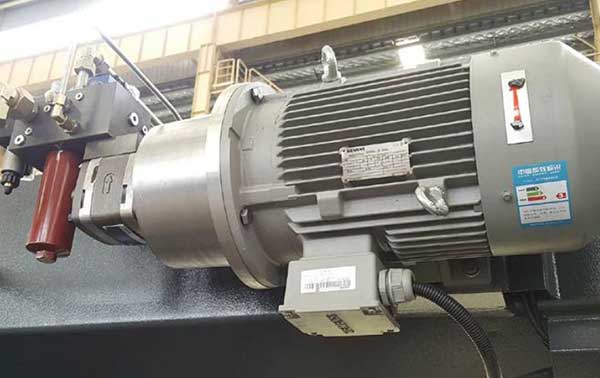

It is used to adjust the stoke throughout the length of the material and also reset the speed at any position by the program to have control over the stroke & position. The siemens motor consumes less energy, moves the punch & die back and forth effectively, produces precise bending results and perfectly works with the controller in CNC hydraulic press brake.

Technical Specification

Model(AC/MB7)	KN	40T/2500	63T/2500	80T/2500	80T/3200	80T/4000
Bending Capacity	mm	400	630	800	800	800
Bending Length	mm	2500	2500	2500	3200	4000
Between Columns	mm	2000	2000	1990	2600	3350
Throat Depth	mm	200	250	280	280	280
Slide Stroke	mm	100	100	100	100	100
Stroke Adjustment	mm	80	80	80	80	80
Max Shut Height	mm	330	340	360	360	360
N et Weight	KG	3600	4600	4800	6180	7720
Outline Size (L+W+H)	mm	2950X1920 X2240	3100X1890 X2200	3120X1910 X2300	3820X1925 X2300	4650X1925 X2300

Major Components

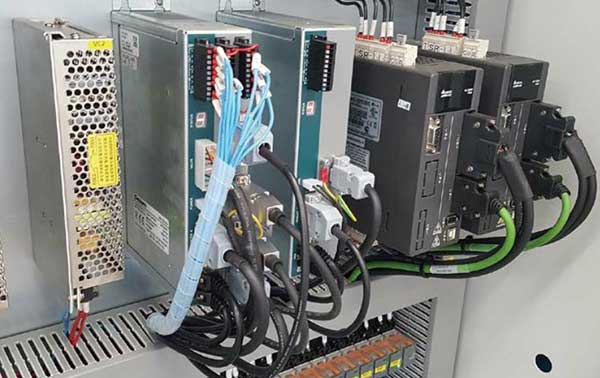

Electricals Schneider

Controller E21 Estun (Optional)

Ball Screw HIWIN
Taiwan (Optional)

Hydro-Cylinder
YU HUA

Guide HIWIN Taiwan (Optional)

Main motor Siemens Germany

Rexroth Hydraulic
System

Component Details & other Information

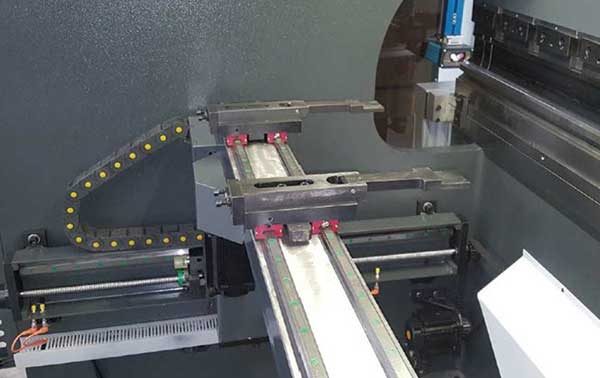

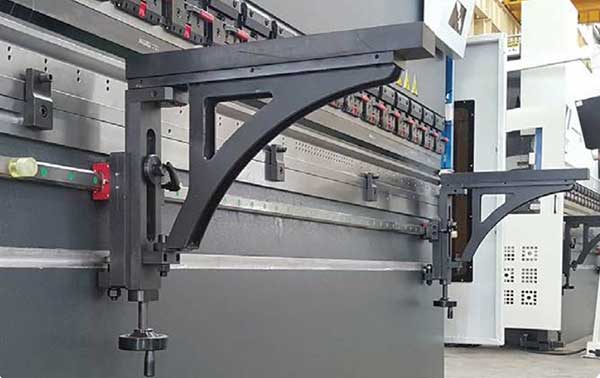

Linear Guide
It is mounted on the linear guide, can adjust the height up & down or rightwards & leftwards, easy handling with little effort due to its low weight and prevents the scratch in the material. The very simple, user-friendly control unit, even the semi-skilled operators can conveniently program that improves labor efficiency and shortens the production cycle. Provides the precise pressure for the bending process while clamping the material, holds the material in the right position and reduces the processing downtime.

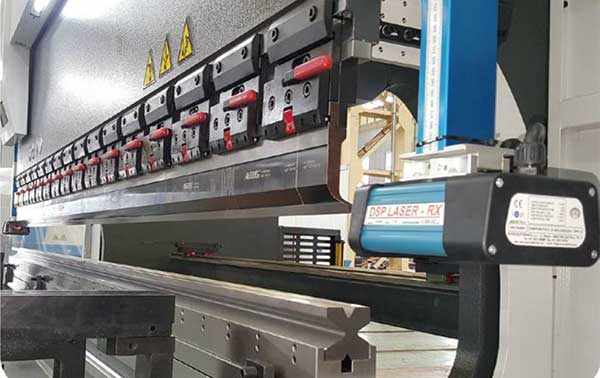

Ram’s Motion
It is much safer to work, doesn’t require as much effort to operate, increased the production speed, quality and efficiency of bending metals. The bending angle is accurately controlled by constantly regulating the ram’s motion. The ram is connected with the machining system to keep it parallel throughout the bending process.
