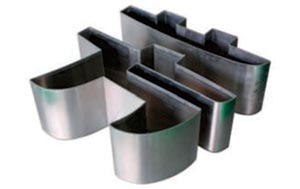

The classic channel letter bender & bender – c is essentially a metal forming tool and the main purpose is to make a bend on a workpiece. It is useful to make many forms in the material such as aluminum, stainless steel & galvanized steel and can perform the flanging, notching, V slot & bending operations. These machines don’t require any special skills to use, highly precise, efficient computer-controlled equipment, quality ball screws & linear guides for better performance, ensure high weight handling capacity and allow for rapid production as well.
Model: Classic Bender / Bender C
| Model | Classic Bender | Bender C |
|---|---|---|
| Motor | Servo | Servo |

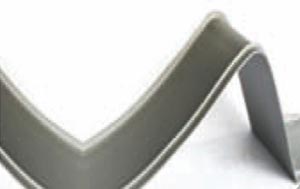

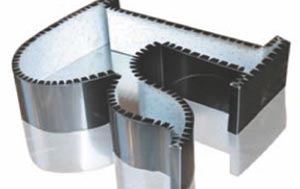

| Major Function | Flanging , Noching, V Slot, Bending | V Slot, Bending |
| Flanging & Notching | Aluminium: upto 0.8mm | Aluminium: upto 0.8mm |
| Vaccum System | Optional | Optional |
| Operating System | Windows 7 (32bit) / Windows XP | Windows 7 (32bit) / Windows XP |
| Bending Material | Aluminium, Stainless Steel, Galvanized Steel (Strips/Rolls) | Aluminium, Stainless Steel, Galvanized Steel (Strips/Rolls) |
| Material Height | 30-200 mm | 25-150 mm |
| Material Thickness | AL(mm): 0.4 - 2.0, SS/GI: 0.4 -1.2 | AL / SS /GI (mm): 0.4 - 1.0 |
| Maximum Bending Anlge | 120 | 120 |
| Min Radius for Circle | R10 | R10 |
| Width of Flange | 6- 14 mm | 6- 14 mm |
| Min. Radius of half circle | R6 | R6 |
| Interface | PCI Card | PCI Card |
| Power Specification | AC 380V, 50 or 60 HZ, 15 Amp | AC 220V, 50 or 60 HZ, 15 Amp |
| Operational Environment | Temperature 20° C 40° C Humidity 20 % - 80 % | Temperature 20° C 40° C Humidity 20 % - 80 % |
| Software | Corel Draw / Illustrator / Autocad | Corel Draw / Illustrator / Autocad |
| Air | 90 PSI 6 Bar | 90 PSI 6 Bar |
| Weight | 700 kg | 500 kg |
| Dimension Machine | L 2700 X W 1200 X H 1500mm | L 1540 X W 940 X H 1620mm |
| Dimension Physical Layout | L 3700 X W 1200 X H 1500mm | L 3000 X W 1000 X H 1500mm |
The supported operating system is Windows, for the feeding creation of designing the software to be used are CorelDRAW, illustrator & Autocad. With USB data transfer interface 2.0 can automatically instruct the machine for the handling of the process. The extended feature of giving multiple angle settings makes the operation more convenient for the massive output.
In channel letter bender, a guiding system facilitates the bending process, makes the operation continue for the long term, improves the exact sliding motion and avoids the end-product wrinkles & keeps the stress away to eliminate the slippage. The servo motor provides stability efficiently and full drive torque.
