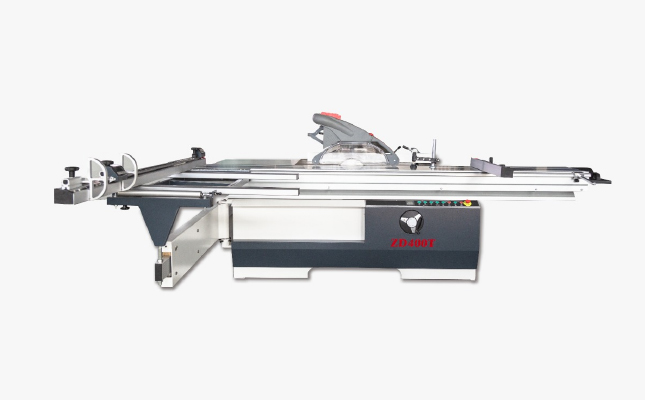

The new range of automatic sliding table saw has been designed to satisfy the requests of a more demanding wood cutting market. This sliding system provides a precise table for smooth travel with guideways & bearings. The machine frame is equipped with notable thickness, sturdiness & solid construction to guarantee a perfect product, high durability and impeccable precision. The structure of the saw unit is extremely rigid which ensures vibration-free operation while moving up & down, exact movement and long-lasting.
Model: MM400T
| Model | MM400T |
|---|---|
| Dimension of sliding table | 3200x415mm |
| Gross cut capacity | 3200mm |
| Width of cut between saw blade and rip fence | 1250mm |
| Tilting saw group | 0-45° |
| Diameter of main saw blade | 400mm |
| Max cutting height 90° / 45° | 120mm |
| Speed of main saw spindle | 3000/4000/5000 r.p.m |
| Main saw motor power | 5.5 kw |
| Main spindle diameter | 30mm |
| Diameter of scoring saw blade | 120mm |
| Speed of scoring saw spindle | 8000 r.p.m |
| Scoring saw motor power | 1.1 kw |
| Scoring saw spindle diameter | 22mm |
| Gross weight | 1100 kgs |
| Overall dimension | 3250x3150x900mm |

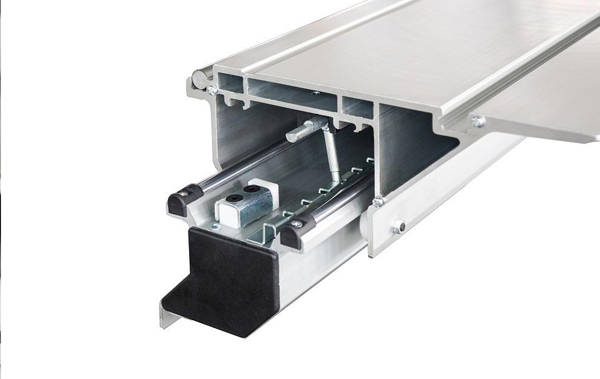

Sliding Table
The double layer aluminum 415mm sliding table is configured with the bed, section guide, main & secondary saw, motor drive and other components. It has stability and provides a smooth range of motion with accurate cuts.
Control Panel

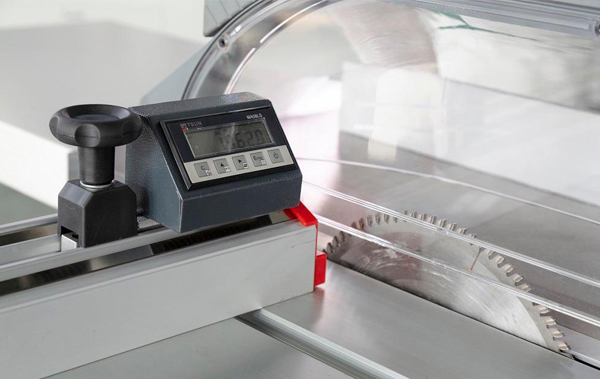

The control panel can control the movement of main & scoring blade lifting, give the angle processing parameters by digital indicator and humanized design for easy operation.

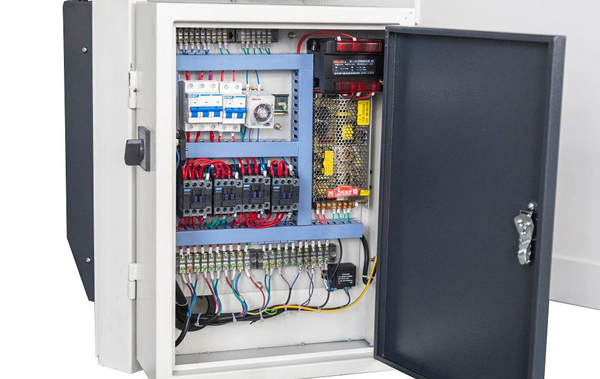

Electric Box
The independent electric box of automatic sliding table saw encloses the connections without any power failures, avoids affecting the functioning and working for a longer lifetime.
